HDMI LC SFP TRANSCEIVER&RECEIVER

Description：
The FT-HDMI-10KM-TA have a serializer to transform the 4x TMDS signals into a10.3Gb/s serial high-speed data, and converted into light pulses by optical transmitter, it’s wavelength is 1310nm.
The FT-HDMI-10KM-RB have a optical receiver and a de-serializer inside, The optical receiver convert the 1310nm10.3Gb/s s optical pulse signal into electronic serial data, and the De-serializer transform the high-speed serial data to 4x TMDS signals.

Feature:
● SFP LC Package；
● Hot pluggable;
● 1xLC optical connector;
● 1310nmDFB-LD TRANSCEIVER and PIN-TIA RECEIVER ;
● Distance up to 10km over SM fiber ;
● Single +3.3V power suply ;
● Operation Tem. 0℃~+70℃;
● Compliant with ROHS;

Application:
● DVI/HDMI High-Definition Video Fiber transmission system；

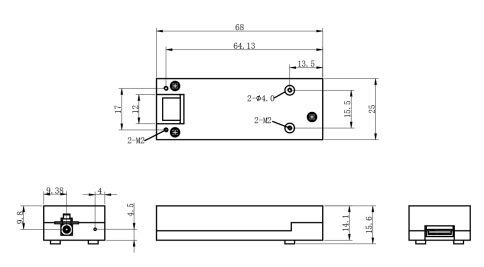

Outline Specification

Ordering Information

注：本产品有全国产化型号可选
本产品仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
