Features:
● Wide Bandwidth
● Internal Bias-T
● DC Coupled
● Hermetically sealed, SMA connector
Applications:
● High Speed Optical-fiber Communication
● Microwave Photonic Link
● High speed Test and Measurement
Absolute Maximum Rating (@T C = 22±3℃)
Parameter |
Sym |
Rating |
Unit |
Storage temperature range |
TSTG |
-45~+85 |
℃ |
Operating case temperature range |
TC |
-40~+70 |
℃ |
Bias Voltage |
VR |
12 |
V |
Optical Input Power |
Pin |
13 |
dBm |
Lead soldering temperature |
TP |
260(10s) |
℃ |
Electrical/Optical Characteristics (@T C = 22±3℃)
Parameter |
Sym |
Test Condition |
Parameter values |
Unit |
||
Wavelength range |
λ |
- |
1000-1650 |
nm |
||
Frequency range |
- |
- |
C Band |
X band |
Ku band |
- |
Small signal bandwidth |
f-3dB |
V R =5V,λ = 1.55μm P in =0dBm,R L =50Ω |
DC~8 |
DC~12 |
DC~18 |
GHz |
Responsivity |
Re |
V R =5V, P in =0dBm λ = 1.55μm |
≥0.85 |
≥0.80 |
≥0.80 |
A/W |
Amplitude Flatness |
F |
- |
≤±1.5 |
dB |
||
Output VSWR |
VSWR |
- |
≤2.0:1 |
≤2.0:1 |
≤2.5:1 |
- |
Dark current |
ID |
V R =5V, P in =0mW |
≤20 |
nA |
||
1dB compression point saturationInput Optical Power |
Ps |
VR =5 V,λ=1.55μm, Central Frequency fc=9.5GHz, RFin =-10dBm, Pin =1 mW |
≥10 |
dBm |
||
Optical return loss |
Lo |
λ=1.55μm |
≥27 |
dB |
Typical Response Curves

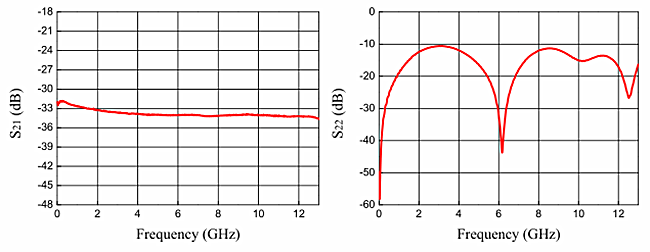

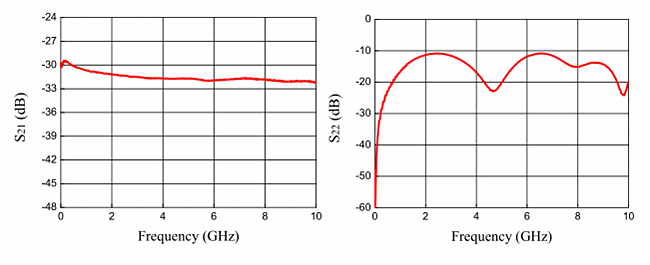

Fig.1 C-Band Photodetector Frequency Response Cruve

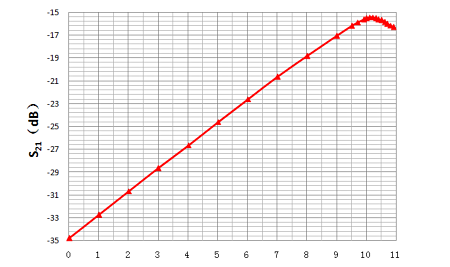

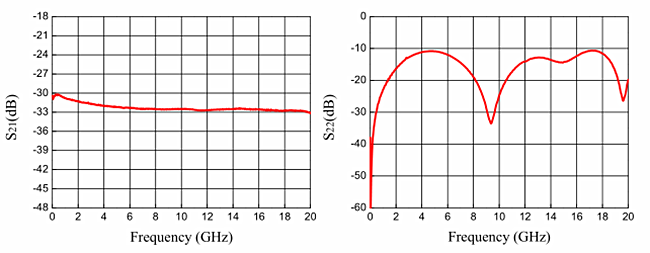

Fig.2 X-Band Photodetector Frequency Response CruveFig.3 Ku-Band Photodetector Frequency Response CruveFig.4 1dB Compression Point Saturation Input Optical Power Cruve

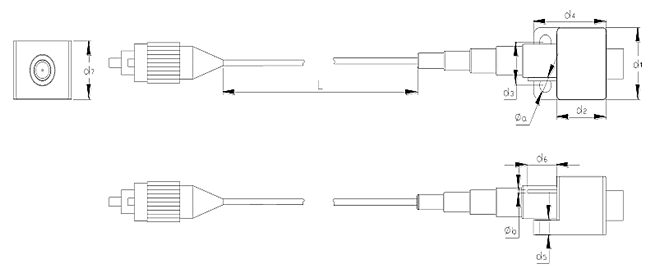

The packages and the pins (Unit: mm)
Size |
Sym. |
|||||||||
d1 |
d2 |
d3 |
e |
d4 |
d5 |
d6 |
φa |
φb |
L |
|
Min |
17.8 |
12.5 |
12.5 |
2.4 |
2.5 |
9.0 |
7.5 |
2.0 |
0.4 |
1000.0 |
Max |
18.2 |
13.0 |
13.0 |
2.6 |
3.5 |
9.4 |
7.7 |
2.2 |
0.5 |
- |
Ordering Information
FT-93-LDPD45220R |
X |
x |
|
Tabel2 |
Table3 |
Table 2 Analog Bandwidth
Code |
Band |
Analog Bandwidth |
C |
CBand |
DC~8GHz |
X |
XBand |
DC~12GHz |
Ku |
KuBand |
DC~18GHz |
Table 3 Fiber Connector
Code |
Connector Type |
Remark |
0 |
No Connector |
single-mode 9/125 μm fiber pigtail |
1 |
FC/PC |
|
2 |
FC/APC |
Qualification Information
Photodetector module has passed reliability assurance requirements as specified by GJB 8120-2013.
Precautions
— The fiber bending radius no less than 20mm for avoiding fiber damaged.
— Be sure the fiber coupling facet is clean before connecting it to opto-circuit.
— The suitable ESD protection is required in storage, transportation and using.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
