J599/26KD18G8SN 光电混装组件
Description
J599/26KD18G8SN 光电混装组件
1、型号
（1）J599/26KD18G8SN-2J599/26FC04B1N-C7*8/6-5MIV5/2
型号说明：左端为 J599/26KD18G8SN 插头（8 光 6 电），右端为 2 只
J599/26FC04B1N 插头和 6 根 0.3 平方导线，使用φ7 八光六电混装缆，光纤为OM3 多模，总长度 5 米，分线长度 2 米。
2、组件外形及尺寸

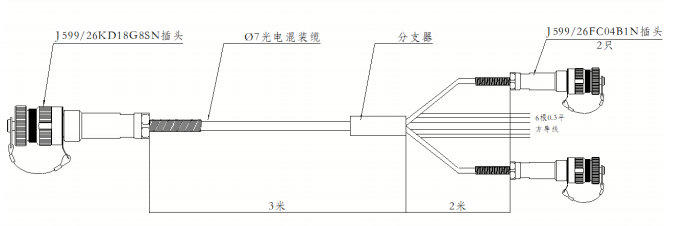

（1）组件外形图

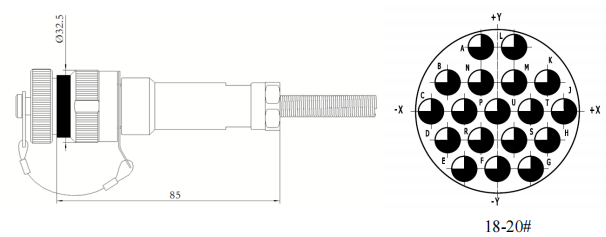

（2）J599/26KD18G8SN 插头外形图

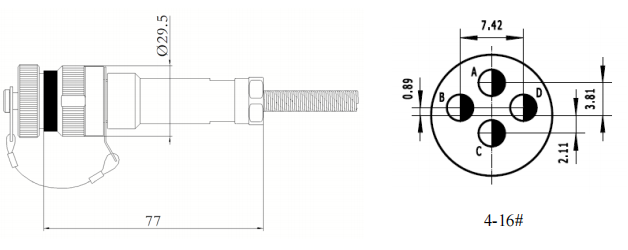

（3）J599/26FC04B1N 插头外形图和接点排列

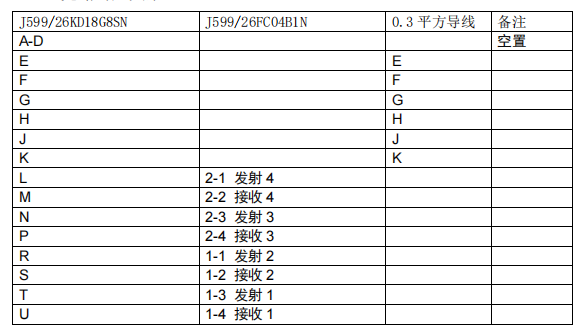

（4）光路对应关系

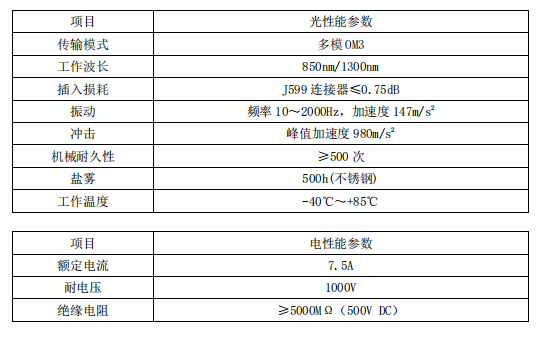

3、产品性能
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
