J599 Ⅲ系列电连接器
Description
产品描述
● 符合 GJB599A(MIL-DTL-D38999) Ⅲ系列
● 采用三头螺纹快速连接，并带防松脱机构，具有体积小，重量轻，接触件密度高，具有电磁屏蔽功能
● 接触件压接可取卸，插针防斜插
● 具有防火壳体、铝合金壳体和多种镀层
● 具有高温下的高强度振动特性，适合在恶劣的风沙和潮湿的场合下使用

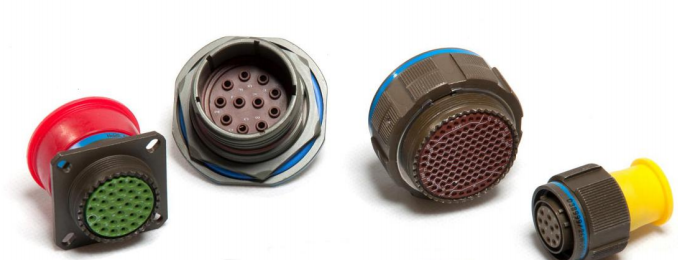

产品图片

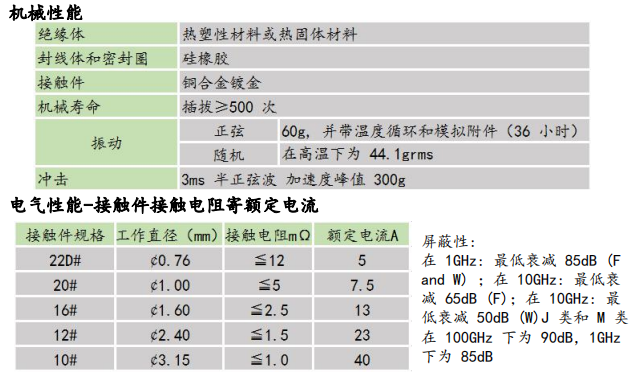

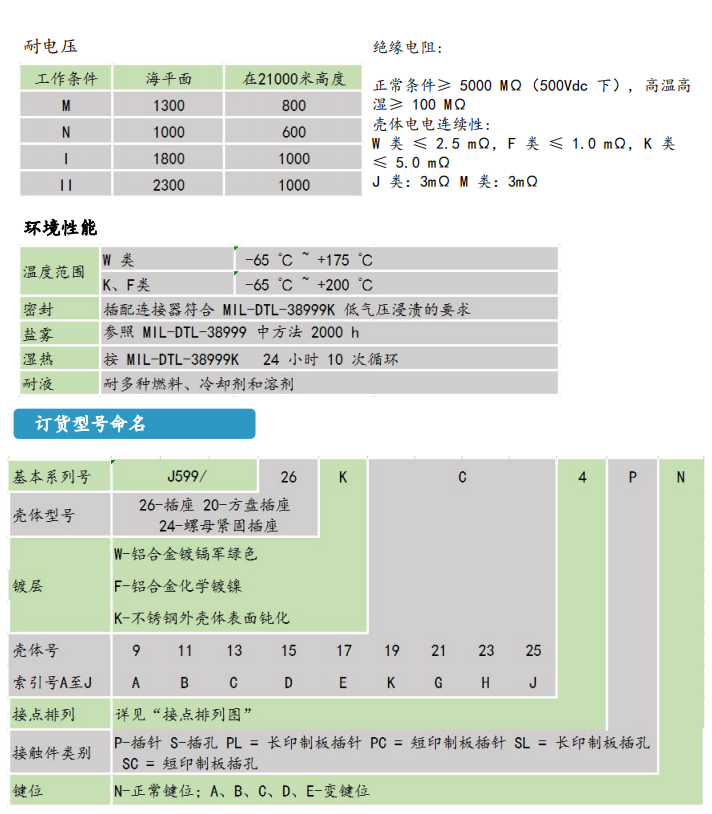

连接器性能
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
