标准光模块
J599光缆组件—D型组件
Description

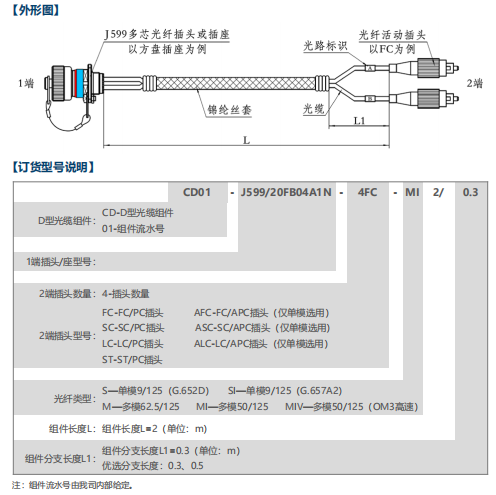

D型光缆组件主要特征：组件1端为J599多芯光纤连接器插头或插座（不带尾部附件），2端为光纤活动插头，光缆为室内光缆，采用锦纶丝套集束。
【订货型号示例】
示例1：CD01-J599/20FB04A1N-4ST-MI2/0.3
表示：J599系列D型光缆组件，组件1端J599/20FB04A1N插座（不带尾部附件），2端为4个ST/PC插头，光纤传输模式为多模50/125，组件长度L为2m，分支长度L1为0.3m
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
