Description

兼容安华高AFBR-5803TZ

Product Features
● Uncooled laser diode with MQW structure
● Reach 2 km Transmission Distance
● Duplex Single Mode Transceiver 1x9 Footprint
● SC, FC or ST Optical Interface are Optional
● Single +3.3V Power Supply
● PECL/LVPECL Differential Inputs and Outputs
● PECL/LVPECL Signal Detection Output alternative
● Fast Ethernet and ITU G.957 Compliant
● Compliant RoHS and lead free
● Complies with Telcordia GR-468-CORE
● Operating case temperature:
         Standard : 0 to +70℃
        Extend : -20 to +85℃
        Industrial : -40 to +85℃

Product Applications
● ATM
● SONET/SDH
● Fast Ethernet
● Switches
● Routers
● Hubs

Performance Specifications
Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Storage Temperature

Tst

-40

+85

℃

Operating Temperature

TO

FTBR-5803Z/FTBR-5803TZ

0

+70

℃

FTBR-5803AZ/FTBR-5803ATZ

-20

+85

℃

FTBR-5803AQZ/FTBR-5803ATQZ

-40

+85

℃

Input Voltage

-

GND

VCC

V

Power Supply Voltage

VCC-VEE

0

+6

V

Recommended Operating Conditions

Parameter

Symbol

Min

Typ

Max

Unit

Storage Temperature

Tst

-40

-

+85

℃

Operating Case Temperature

TC

FTBR-5803Z/FTBR-5803TZ

0

-

+70

℃

FTBR-5803AZ/FTBR-5803ATZ

-20

-

+85

℃

FTBR-5803AQZ/FTBR-5803ATQZ

-40

-

+85

℃

Power Supply Voltage

VCC3.3

3.1

3.3

3.5

V

Data Rate

DR

-

155

200

Mbps

Optical Specification

Transmitter

Parameter

Symbol

Min

Typ

Max

Unit

Note

Center Wavelength

1310 FP

lC

1261

1310

1360

nm

FTBR-5803xx

1550 FP

1500

1550

1600

FTBR-5803xx-1550nm

Spectral Width

Dl

-

-

4

nm

-

Average Optical Output Power

Po

-20

-

-14

dBm

62.5/125UM MMF

Average Optical Output Power

Po

-22.5

-14

dBm

50/125UM MMF

Extinction Ratio

Ext

10

-

-

dB

-

Optical Rise Time(20%-80%)

Tr

-

-

3

ns

-

Optical Fall Time(20%-80%)

Tf

-

-

3

ns

-

Output Eye Diagram

Compliant with ITU-T.G957

Receiver

Parameter

Symbol

Min

Typ

Max

Unit

Note

Operate Wavelength

-

1261

-

1620

nm

-

Sensitivity

Pr

-

-

-32

dBm

1

Saturation

Ps

-3

-

-

dBm

1

Signal Detect Assert Level

-

-45

-

-

dBm

Alarm: Low-level

Signal Detect De-assert Level

-

-

-

-33

dBm

SD Hysteresis

-

0.5

-

5

dB

-

Note: 1. Minimum Sensitivity and saturation levels for a 2 23 -1 PRBS test pattern @155Mbps.

Electrical Specification

Transmitter

Parameter

Symbol

Min

Typ

Max

Unit

Note

Power Supply Current

ICC

-

70

120

mA

2

Input Differential Impedance

ZIN

90

100

110

Ω

-

Differential Input Voltage

VIH- VIL

300

-

2000

mV

-

Receiver

Parameter

Symbol

Min

Typ

Max

Unit

Note

Power Supply Current

ICC

-

60

80

mA

2

Data Output Voltage-Low

VOL-VCC

-2.0

-

- 1.58

V

3

Data Output Voltage-High

VOH-VCC

- 1.1

-

-0.74

V

3

Signal Detect Output Voltage-Low

VSDL-VCC

-2.0

-

- 1.58

V

PECL

Signal Detect Output Voltage-High

VSDH-VCC

- 1.1

-

-0.74

V

Note: 2. The current excludes the output load current.
3. Terminated with 50Ohm to Vcc-2V.

Pin Definitions

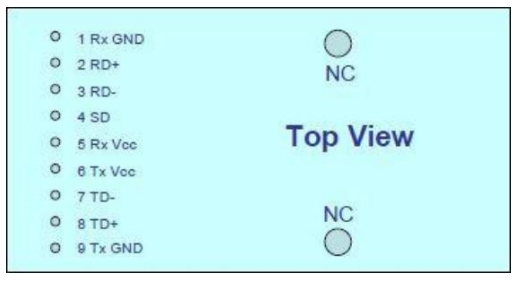

PIN Diagram20240129 4

PIN Description

PIN

Symbol

Note

1

GNDR

Directly connect this pin to receiver signal ground plane.

2

RD+

See recommended circuit schematic.

3

RD-

See recommended circuit schematic.

4

SD

Active high on this indicates a receiver optical signal.

5

VCCR

+3.3V DC power for the receiver section.

6

VCCT

+3.3V DC power for the transmitter section.

7

TD-

See recommended circuit schematic.

8

TD+

See recommended circuit schematic.

9

GNDT

Directly connect this pin to transmitter signal ground plane.

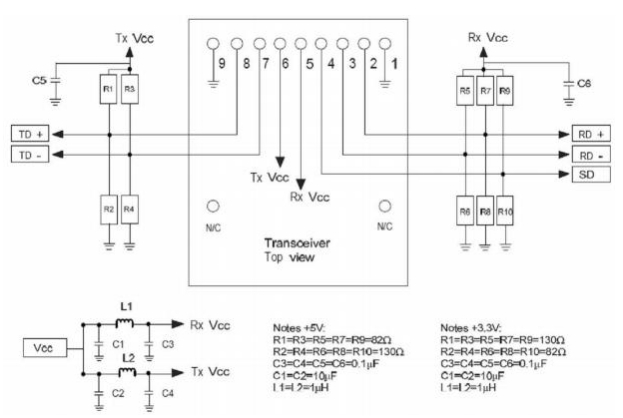

Recommended Circuit 120240129 4

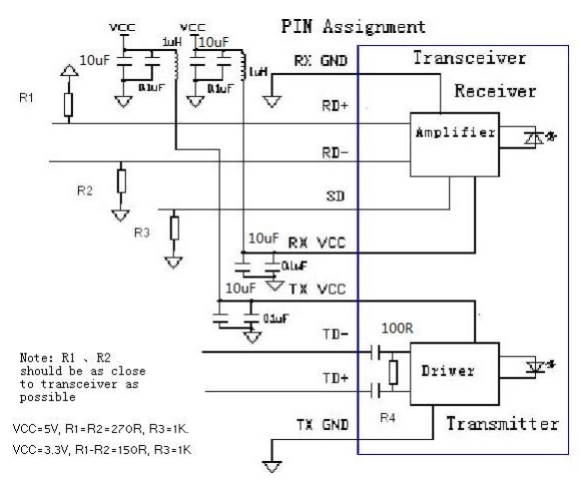

Recommended Circuit 2

 20240129 4

Note: The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals. The power supply filtering is required for good EMI performance.Use short tracks from the inductors L1/L2 to the module Rx VCC/Tx VCC. A GND plane under the module is required for good EMI and sensitivity performance

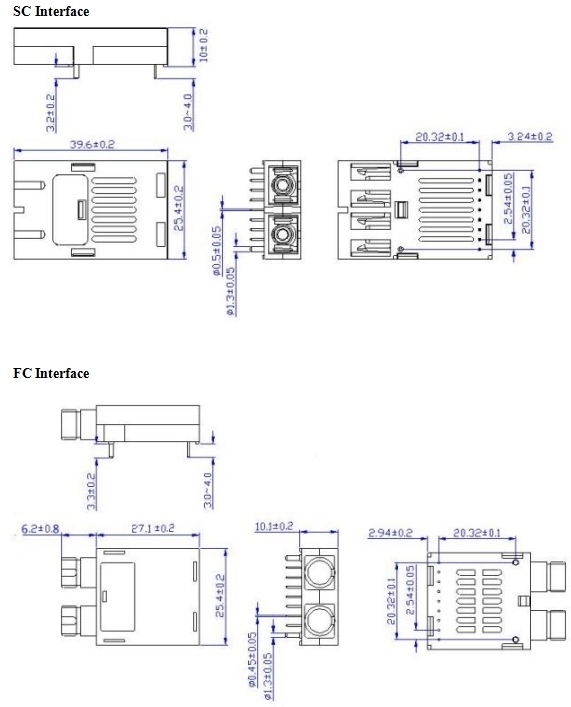

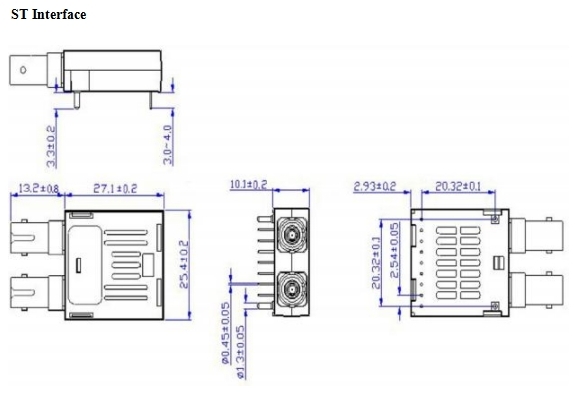

Package Diagram
20240129 120240129 1

Order Information

FTBR-5803Z

兼容AVAGO(安华高)AFBR-5803Z，国产替换兼容AVAGO(安华高)AFBR-5803Z

FTBR-5803TZ

兼容AVAGO(安华高)AFBR-5803TZ，国产替换兼容AVAGO(安华高)AFBR-5803TZ

FTBR-5803AZ

兼容AVAGO(安华高)AFBR-5803AZ，国产替换兼容AVAGO(安华高)AFBR-5803AZ

FTBR-5803ATZ

兼容AVAGO(安华高)AFBR-5803ATZ，国产替换兼容AVAGO(安华高)AFBR-5803ATZ

FTBR-5803AQZ

兼容AVAGO(安华高)AFBR-5803AQZ，国产替换兼容AVAGO(安华高)AFBR-5803AQZ

FTBR-5803ATQZ

兼容AVAGO(安华高)AFBR-5803ATQZ，国产替换兼容AVAGO(安华高)AFBR-5803ATQZ













其他还有大量可替换avago finisar ....等等品牌的产品，请联系北亿纤通的市场人员

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
