25Gbps 1310nm SFP28 液冷光模块
产品描述
F-tone Networks FTCS-25G-LR-2XX-xxx是一款单通道可插拔光纤SFP28,适用于25千兆以太网和CPRI Option 10应用,它的设计特别可靠,可实现液体浸没环境。它是一款高性能模块,适用于10公里以内的25.78125 Gbps短程数据通信和互连应用。该模块设计用于在标称波长为1310nm的单模光纤系统上运行。电气接口使用20触点边缘型连接器。尾纤的光学接口是可选的。该模块结合了经过验证的电路和技术,可提供可靠的长寿命、高性能和一致的服务。
产品特征
● 可热插拔SFP28外形尺寸
● 支持25Gbps数据速率
● 最大链路长度10km
● 非制冷1310nm DML发射器和PIN接收器
● 发射器和接收器通道上的内部CDR
● 可选尾纤类型和长度
● 单路3.3V电源
● 功耗<1.5W
● 符合RoHS(2011/65/EU,无铅)
● 外壳工作温度
商用:0~+60℃
工业:-40~+85℃
产品应用
● 25GBASE-LR以太网
● CPRI选项10
● 液体浸泡环境
● 通过CDR旁路支持10G CPRI选项8

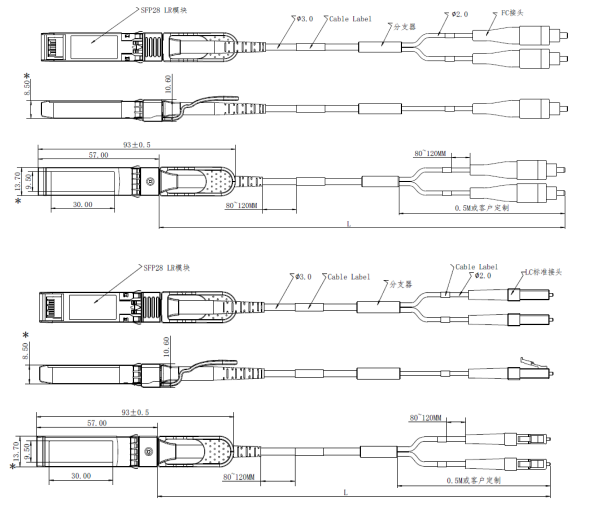

FTCS-25G-LR-2XX-xxx机械尺寸
订购信息
产品型号 |
产品参数 |
FTCS-25G-LR-2XX-xxx |
25Gbps, 1310nm, SFP28, SMF, liquid immersion,0ºC ~ +60ºC |
FTCS-25G-LR-2XX-xxxI |
25Gbps, 1310nm, SFP28, SMF, liquid immersion,-40ºC ~ +85ºC |
XX:pigtail connector type, optional: LC/FC/MPO xxx:pigtail length in meters. |
北亿纤通 | F-tone Networks
企业邮箱:sales@f-tone.com
企业网站:www.f-tone.com
企业网站:www.sfpgmk.com
企业电话:028-85255257
企业传真:028-85977702
本产品为25G~400G高速光模块系列,如有需要,请联系我们。
注:本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
