波分复用器
Mini 1x4 100GHz DWDM Devices

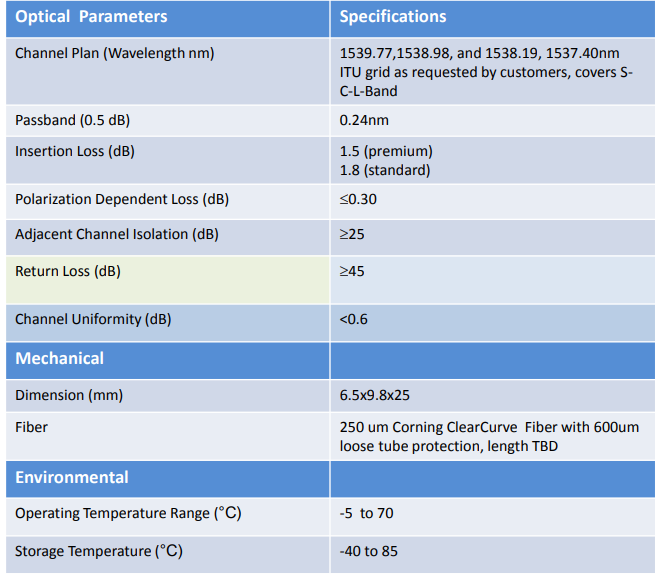

Description
Features
● Compact, 4 channel DWDM (100G) , tightsealed, Epoxy free optical path
Model: DW4-100G-S/C/L
● Combine or separate 4 DWDM channels forWDM-PON or transceivers where ultra-lowinsertion or compact size is required.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
