Multimode Utra-Bandpass Optic Fiber Splitter Specification
Description
Specifications
|
Operation Bandpass |
600nm~1600nm |
|
Fiber Type |
200/220/500um NA0.22 |
|
Cable Type |
2.0mm or3.0mmBlack Color LSZH Cable |
|
Port Configure |
1x2 |
|
Coupling Efficiency |
≥ 85% @Bandpass (Without Connector) |
|
Insertion Loss |
< 3.8 dB |
|
Splitting Ratio |
50%±5% @Bandpass |
|
Power Handling |
≥10 W （Continuous Laser Power without Connectors） |
|
Operating Temperature |
-20~+90 ℃ |
|

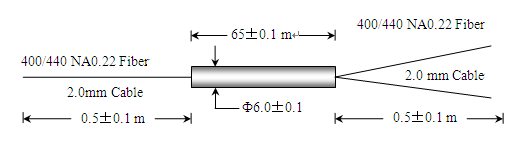

Package Size |
Ø6.0*65mmStainless Tube (For High Power Laser) 90*15*10mmABS Box(For Low Power Laser or LED) |
|
Connectors |
SMA905 or SC/FC/ST/PC(Stainless Ferrule) |
|
Connectors’ Insertion Loss |
< 0.3dB Each Port |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
