OSFP112 400G SR4 Optical transceiver for（dual MPO）flat top solution

Product Description
This product is a 400Gb/s OSFP112 400G SR4 opticalmodule designed for 100m optical communication applications. The module converts 4 channels of100Gb/s (PAM4) electrical input data to 4 channelsof parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s (PAM4) electrical output data. An optical fiber cable with an single MPO-12 connector can be plugged into the OSFP112 400G SR4 module receptacle. Host FEC is required to support up to 100m fiber transmission.

Features
● Up to 106.25 Gbps data rate per channel by PAM4modulation
● Support 400GAUI-4 electrical interface
● Integrated 850nm VCSEL array and PD array
● DDM function implemented
● Hot-pluggable
● Single +3.3V power supply

Applications
● Data centers and Cloud Networks

Standards
● Compliant to OSFP MSA 5.0
● Compliant with CMIS 5.1
● 4x106. 25Gb/s electrical interface(400GAUI-4)
● Maximum power consumption 8W
● Single +3.3V power supply
● Case temperature range: 0 ~ +70℃
● RoHS 2.0 complaint

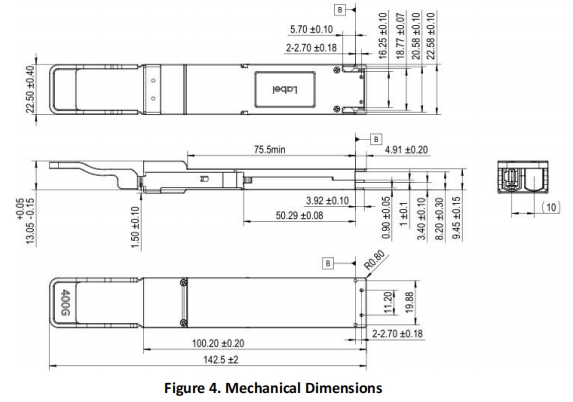

Mechanical Dimension
Ordering information

注：本产品有全国产化型号可选
本产品为OSFP系列，仅展示部分参数，如有需要，请联系我们。

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
