Polarization Insensitive Optical Circulator

0.0/5 rating (0 votes)

Description

Polarization Insensitive Optical Circulator

Features：

High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free

Application：

EDFA,DWDM and OTDR
DWDM and OADM networks
Bi-directional transmission system

Specifications ：

Type Parameter		3 Port		4 Port
Operating wavelength (nm)		1310 ，1450，1480 ，1550 , 1580 ，1610	1550	1310 ，1450，1480 ，1550 , 1580 ，1610	1550
Bandwidth (nm)		±30	1520~ 1620(C+L)	±30	1520~ 1620(C+L)
Typ. Peak Isolation		50	50	50	50
Isolation 23C (dB)		≥40	≥35	≥40	≥35
Insertion Loss (dB)		≤0.8	≤ 1. 1	≤ 1.0	≤ 1.2
PDL (dB)		≤0. 15		≤0.20
Return loss (dB)		≥50
PMD (ps)		≤0. 1
Directivity		≥50
Power handling (mW)		≤500
Fiber Type		SMF-28e
Operating temperature (C)		0 ~ +70
Storage temperature (C)		-40 ~ +85

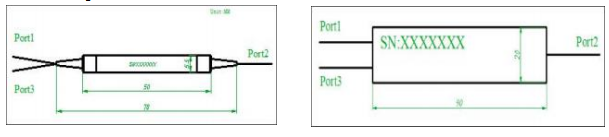

Package Dimensions (mm)	For bare fiber or 900um loose tube	φ5.5×L38 or φ5.5×L50		φ5.5×L64
	For 3mm or 2mm cable	L90W20H9.5(P2)

*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower
*The transmission optical path of 3Ports is different from 4Ports ：3Ports ：1 -> 2 ，2 -> 3 ； 4Ports ：1 -> 2, 2 -> 3, 3 -> 4

Packing Dimensions：

Ordering Information ：

FCIR	wavelength	Type	Grade	0	Package	Pigtail Type	Length	Connector
FCIR	1310= 1310nm 1450= 1450nm 1480= 1480nm 1550= 1550nm 1580= 1580nm 1610= 1610nm CL00= 1520~ 1620nm	3=3Port 4=4Port	P=P Grade	0	1=P1(5.550mm) 2=P2(90209.5mm) 3=P3(4.743±1mmGlass tube ) 4=P4(4.943±1mmGlass tube ) 5=P5(5.538mm) 6=P6(5.564mm) 7=P7(4.933±1mmGlass tube )	1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube S=Specify	H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m S=Specify	0=None 1=FC/UPC 2=FC/APC 3=SC/APC 4=SC/UPC 5=MU 6=LC/UPC 7=LC/APC S=Specify

注：本产品有全国产化型号可选
本产品仅展示部分参数，如有需要，请联系我们。
