Description
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to QSFP28 4WDM 40KM MSA standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56,1300.05,1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and up to 40km links with FEC interconnections.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
● 4 channels full-duplex transceiver modules
● Supports data rate up to 103.1Gb/s
● Supports QSFP28 4WDM 40km MSA
● 4 x 25Gb/s DFB-based LAN-WDM Cooling transmitter
● 4 channels APDROSA
● Internal CDR circuits on both receiver and transmitter channels
● Low power consumption<3.8W
● Hot Pluggable QSFP form factor
● Up to 30kmreachfor G.652 SMF without FEC
● Up to 40kmreach for G.652 SMF with FEC
● Duplex LC receptacles
● Operating case temperature -40°C to +85°C
● 3.3V power supply voltage
● RoHS 6 compliant (lead free)

Applications
● IEEE 802.3ba 100GBASE-ER4 Links
● Client-side 100G interconnections

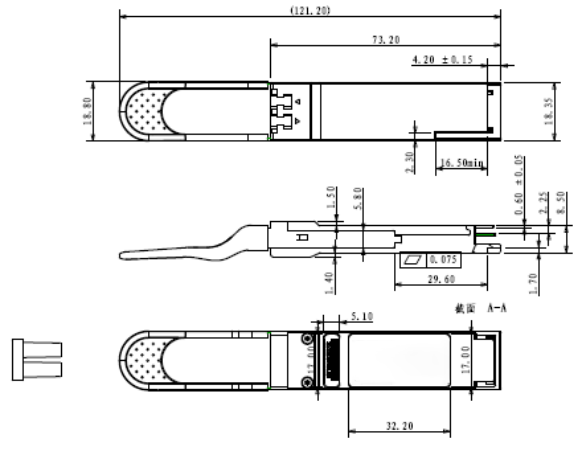

Mechanical Dimensions

Ordering information

本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
