QSFP28光模块测试板
Description
测试板特点
● 专业仿真团队设计，信号质量优异
● 支持 QSFP28 和 QSFP+光模块的测试
● 支持 4V 或 3.3V 供电
● USB 接口直接访问模块
● 可使用电源适配器直接供电
● 支持板上电流检测
接口说明
◆ QSFP28 接口（J1）
J1 为 QSFP28 光模块的标准接口,测试时将光模块接入该接口。
◆ 电源接口（J3、J6）
J3电源接口

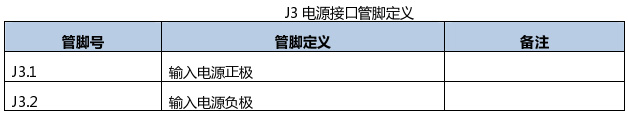

J3 电源接口有两个管脚,管脚定义如下:
J6 电源接口可方便电源适配器供电,接头支持 5.5*2.5mm 和 5.5*2.1mm。
◆ USB 接口（J4）
测试板的 USB 接口采用 USB 类型 B 插座，连接性更为可靠。
USB类型B插座
◆ 控制接口（J8、J9、J005、J006）
输入电源选择接口

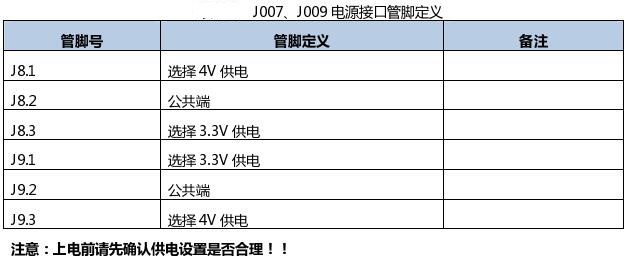

J8、J9 用于选择供电电压，当用 3.3V 供电时，将 J8、J9 的跳线帽都接到丝印为“3.3V”一侧；当用 4V 供电时，将 J8、J9 的跳线帽都接到“4V”一侧，其管脚定义如下：
◆ I2C 接口（J5）
I2C接口

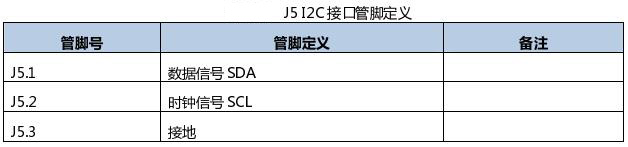

当不希望通道 USB 接口访问模块时，可直接通过 J5 访问模块。注意，此时需要断开 USB 连接。J006 的管 脚定义如下：
