QSFP28 to QSFP28 cage, with EEPROM on the cage side, 30AWG

Product Description
100G Solution for Liquid Immersion Cooling System
Liquid cooling has been an accepted method of conditioning electronics for more than half a century. Immersion Cooling is at the foundation of Immersed Computing. It means the complete immersion of electronic components in a dielectric liquid. By doing so, all the heat generated by the IT is captured in the liquid. Suitable dielectric liquids can absorb approximately 1500 times more heat energy than air with the same volumes and temperatures.

Concerning the device temperature control, the application of immersed computing design is a trend. However, the performance of fiber lens degrades in liquids, which means that the I/O link can't support the deployment of transceivers and active optical cables.QSFP28 Extender, is designed to be applied for immersion solution. It extends the 100G interlaces to surface, aiming to realize the interconnection of 100G transceivers and AOC cables.

Features:
● Compliant QSFP MSA specifications and SFF-8436
● Low EMI radiation
● Insertion Loss 7.5dB on 40G Application
● Oil-resistance, dust-proof and anti-corrosion
● 100 ohm differential impedance system
● Low Near-End Crosstalk(NEXT)
● Customizable EEPROM mapping for cable signature
● RoHS compliant

Applications:
● Extend the 40Gb/s high speed interconnection for liquid immersion solution
● Extend the link of 40G AOCs
● Extend the link of 40G transceivers

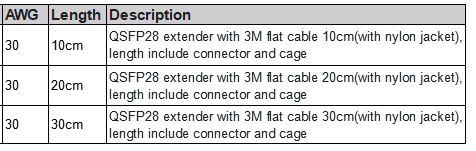

Order Information:

Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
