QSFP+ Extender (up to 80KM or I00KM)
Description
QSFP+ Extender (up to 80KM or I00KM)
F-tone Networks’s QSFP+ Extender (up to 80KM or I00KM) are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP28 MSA, IEEE 802.3ba QSFP+ Extender (up to 80KM or I00KM) and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and F-tone Networks Application Note "http://www.f-tone.com/qsfp28-reference.html". The optical transceiver is compliant per the RoHS Directive 2010. See F-tone Networks Application Note "http://www.f-tone.com/qsfp28-reference.html" for more details.
Applications
● QSFP+ long distance link
● InfiniBand 4X SDR, DDR, QDR and FDR
● Ethernet 10G, 40G
● FiberChannel 10G, 40G, SAN, 4X16G
● Rack-to-Rack, Shelf-to-Shelf Interconnect
● Top of Rack (TOR)
standards compliance
● QSFP+ End
Electrical: IBTA V2 Revision 1.2.1 and 1.3
IEEE 802.3ba
SFF-8436
● SFP+ End
SFF-8431
SFF-8432
SFF-8472
RoHS

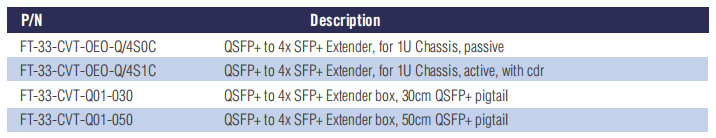

Information:
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networksbefore they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
