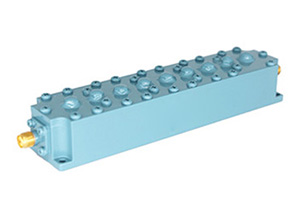

腔体滤波器
Description
产品描述：
滤波器，是对波进行过滤的器件。它可以使信号中特定的频率成分通过，而极大地衰减或抑制其他频率成分。包括低通滤波器，高通滤波器，带通滤波器和带阻滤波器等。
产品特点
● 提供低通、高通、带通和带阻滤波器
● 低损耗
● 优良的带外抑制
典型应用
● 实验室测试
● 收发系统
|
型号 |
中心频率 (MHz) |
带宽 |
插入损耗 |
带内波动 |
回波损耗 |
带外抑制 (dB) |
连接形式 |
|
FT-AT-LBPF-395-10-Q6 |
395 |
10 |
1.00 |
0.50 |
18 |
≥40dB @ f0 ±15MHz |
SMA-F |
|
FT-AT-LBPF-780-10-Q5 |
780 |
10 |
1.50 |
1.00 |
18 |
≥40dB @ f0 ±20MHz |
SMA-F |
|
FT-AT-LBPF-875-150-S9 |
875 |
150 |
1.00 |
0.80 |
15 |
≥50dB @ 700MHz |
SMA-F |
|
FT-AT-LBPF-922-6-Q6 |
922 |
6 |
2.00 |
1.00 |
16 |
≥60dB @ 909.5MHz |
SMA-F |
|
FT-AT-LBPF-1205-12-Q6 |
1205 |
12 |
1.30 |
1.00 |
18 |
≥40dB @ f0 ±20MHz |
SMA-F |
|
FT-AT-LBPF-1874-20-Q4 |
1874 |
20 |
1.00 |
0.50 |
18 |
≥40dB @ 1980-3748MHz |
SMA-F |
|
FT-AT-LBPF-2400-200-Q6 |
2400 |
200 |
1.20 |
0.60 |
18 |
≥60dB @ f0 ±400MHz |
SMA-F |
|
FT-AT-LBPF-2600-220-Q6 |
2600 |
220 |
1.20 |
0.60 |
18 |
≥60dB @ f0 ±400MHz |
SMA-F |
|
FT-AT-LBPF-3910-600-Q6 |
3910 |
600 |
1.00 |
0.50 |
15 |
≥55dB @ 3415MHz |
SMA-F |
|
FT-AT-LBPF-4400-20-Q5 |
4400 |
20 |
5.00 |
|
18 |
≥50dB @ f0 ±50MHz |
SMA-F |
|
FT-AT-LBPF-4495-190-Q7 |
4495 |
190 |
3.00 |
|
15 |
≥40dB @ 4220-4300MHz |
SMA-F |
|
FT-AT-LBPF-5780-100-Q7 |
5780 |
100 |
3.00 |
|
15 |
≥50dB @ 5330-5500MHz |
SMA-F |
|
FT-AT-LBPF-6150-640-Q13 |
6150 |
640 |
1.00 |
0.50 |
15 |
≥65dB @ 5650MHz |
SMA-F |
|
FT-AT-LBPF-8150-500-Q19 |
8150 |
500 |
1.00 |
0.50 |
15 |
≥30dB @ 7750MHz |
SMA-F |
|
FT-AT-LBPF-9700-200-Q6 |
9700 |
200 |
2.00 |
1.00 |
15 |
≥70dB @ f0 ±580MHz |
SMA-F |
|
FT-AT-LBPF-10500-1000-Q5 |
10500 |
1000 |
1.00 |
|
15 |
≥45dB @ DC-8000MHz |
SMA-F |
|
FT-AT-LBPF-11000-6000-Q13 |
11000 |
6000 |
1.00 |
|
8 |
≥60dB @ 16000-25000MHz |
SMA-F |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
