详情介绍：
RFODL微波光纤延迟线的特点：
微波光纤延迟线是雷达校验系统、RF通信系统、微波信号处理系统等相关应用的上等解决方案。输入的RF信号转换为调制的光信号，然后输入单模光线中，并生成一个固定的延时，然后在输出端再次转换回RF信号。

RFODL微波光纤延迟线Applications:
● Radar Calibration &Testing
● Signal & Phase Noise Processing
● Extension of radar range site
● RF Communications Links & Antenna remoting

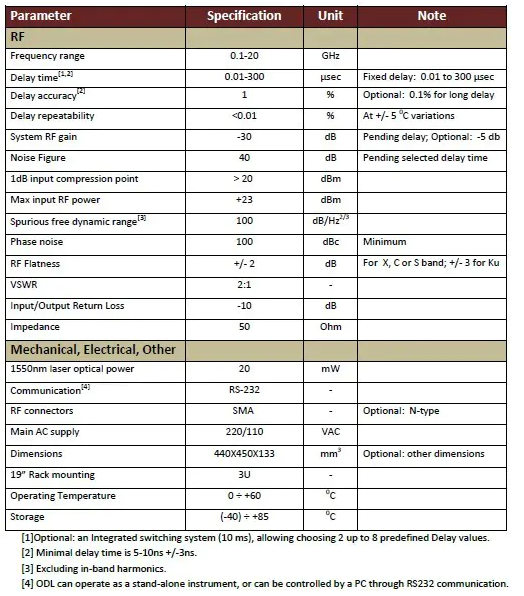

RFODL微波光纤延迟线Key features:
● Delays: 10 ns - 300 μsec (fixed)
● Frequency Range: 0.1-20 GHz
● Delay accuracy: 1% / 5 ns
● Remote control: RS-232
RFODL微波光纤延迟线Options:
● ODL with 2 - 8 different delays
● 1 3U module , or 2 modules enclosures
● Customized ODL modules

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
