S波段T/R双工SiP模块（1W/2W）

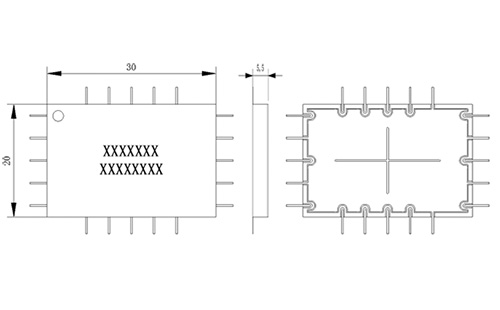

Description
产品特点
● 细步进
● 低相噪
● 低杂散
● 体积小
● 气密性好
● 可靠性高
典型应用
● 航空
● 机载
|
接收通道电性能参数（TA=+25℃，Vdd=+5V，Vee=-5V） |
||||
|
参数名称 |
单位 |
最小值 |
典型值 |
最大值 |
|
频率 |
MHz |
- |
S |
- |
|
噪声系数 |
dB |
- |
- |
2 |
|
增益 |
dB |
32 |
- |
- |
|
全频段增益变化 |
dB |
- |
±0.75 |
- |
|
通道一致性 |
dB |
- |
±0.75 |
- |
|
输出P-1 |
dBm |
15 |
- |
- |
|
输入输出阻抗 |
Ω |
- |
50 |
- |
|
输入/输出回波损耗 |
dB |
- |
- |
-10 |
|
数控移相器 |
bit |
- |
6 |
- |
|
数控衰减器 |
bit |
- |
4 |
- |
|
滤波器带外抑制@发射频率 |
dB |
70 |
- |
- |
|
+5V工作电流 |
mA |
- |
130 |
- |
|
发射通道电性能参数（TA=+25℃，Vdd=+5V，Vee=-5V） |
||||
|
参数名称 |
单位 |
最小值 |
典型值 |
最大值 |
|
频率 |
MHz |
- |
S |
- |
|
增益 |
|
39 |
- |
- |
|
全频段增益变化 |
dB |
- |
±0.5 |
- |
|
通道一致性 |
dB |
- |
±0.75 |
- |
|
输出P-1（线性输出，含双工器） |
dBm |
30/33 |
- |
- |
|
输入输出阻抗 |
Ω |
- |
50 |
- |
|
输入/输出回波损耗 |
dB |
- |
- |
-10 |
|
数控移相器 |
bit |
- |
6 |
- |
|
数控衰减器 |
bit |
- |
4 |
- |
|
滤波器带外抑制@接收频率 |
dB |
70 |
- |
- |
|
+5V工作电流 |
mA |
- |
770 |
- |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
