标准光模块

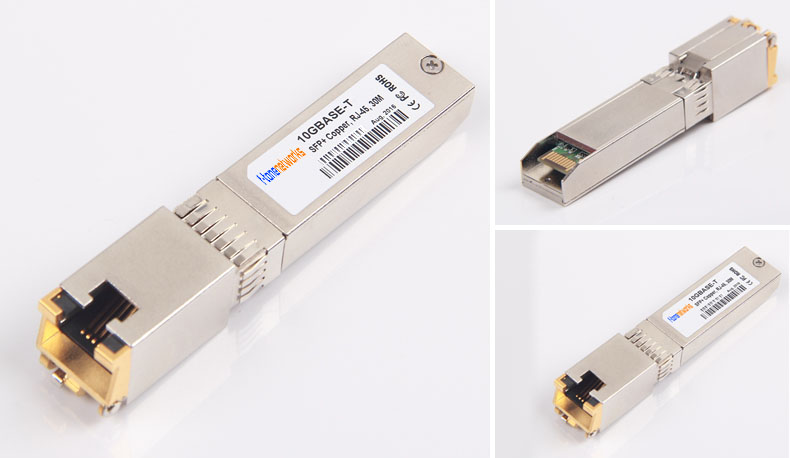

SFP+万兆电口模块
Specifications
- 产品型号: FTCS-XG-T
- 兼容品牌: 全系列
- 封装类型: SFP+
- 传输速率: 10000BASE-T
- 传输距离: 30m
- 发射波长: SFP+ 万兆电口模块 10000BASE-T (Copper, 30m, RJ45)
- 接收波长: SFP+ 万兆电口模块 10000BASE-T (Copper, 30m, RJ45)
- 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
- 数字诊断: SFP+ 万兆电口模块 10000BASE-T (Copper, 30m, RJ45)
- 接收灵敏度: SFP+ 万兆电口模块 10000BASE-T (Copper, 30m, RJ45)
- 接收灵敏度: SFP+ 万兆电口模块 10000BASE-T (Copper, 30m, RJ45)
Description
SFP+万兆电口模块
|
SFP+ 万兆电口模块 10000BASE-T (Copper, 30m, RJ45)
|
|||
|
型号
|
10000BASE-T
|
品牌
|
F-tone Networks(北亿纤通)
|
|
产品类型
|
SFP+
|
速率
|
10.3Gbps
|
|
波长
|
|
最大传输距离
|
30米
|
|
接口
|
RJ45
|
工作温度
|
0 to 70°C
|
|
线缆类型
|
CAT 6 or CAT 7
|
|
|
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
