标准光模块
SFP光模块 百兆/千兆 1310nm 10KM
Description
SFP光模块 百兆/千兆 1310nm 10KM
产品描述
F-tone Networks的GEFE小型可插拔（SFP）光模块与小型可插拔多源协议（MSA）兼容，专为SGMII MAC接口到100BASE-FX而设计（SGMII MACInterface实现了修改后的1000BASE-LX自动协商，以指示到MAC的链路、双工和速度）。光模块由四个部分组成：带DDM的标准SFP部分、带SGMII接口的PHY部分、1310nm FP激光器和PIN光电探测器。模块数据链路长达10km，采用9/125um多模光纤。
产品特点
● 支持SGMII接口的内置PHY
● 内置高性能MCU，支持更轻松的配置
● 可热插拔
● 100BASE-LX/1000BASE-LX操作的双数据速率
● 1310nm FP激光发射器和PIN光电探测器
● 双工LC连接器
● 符合RoHS标准且无铅
● 9/125μm SMF上长达10公里
● 单个+3.3V电源
● 标准序列号信息与SFP MSA兼容
● 支持数字诊断监测接口
● 工作环境温度：
工业温度：-40至+85°C
商业温度：-5至+70°C
应用
● 切换到切换接口
● 交换背板应用
● 快速以太网
● 其他光传输系统

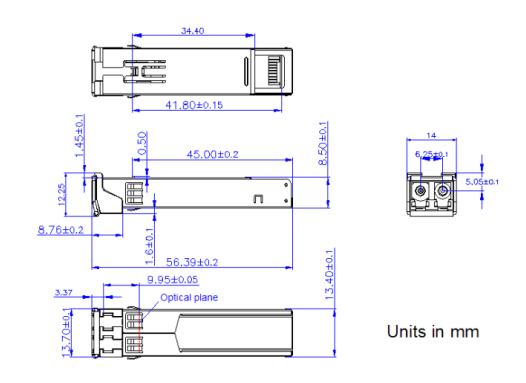

模块外形图（单位：mm）
订购信息
|
产品型号 |
传输速率(Mbps) |
类型 |
波长(nm) |
传输距离(km) |
DDM |
级别 |
|
FTCS-13RG-10D |
125/1250 |
SMF |
1310 |
10 |
Yes |
商业级 |
|
FTCS-13RG-10DI |
125/1250 |
SMF |
1310 |
10 |
Yes |
工业级 |
注：本产品有全国产化型号可选
本产品为SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
