SFP 3G 1310nm Dual Optical Transmitter SDI
Description
SFP 3G 1310nm Dual Optical Transmitter SDI
FEATURES
● Distance up to 10 km for 3G-SDI
● Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
● Dual Transmitter with Duplex LC
● Speed from 50 Mbps to 3 Gbps
● Single 3.3 Volt DC supply
● Based on Industry Standard SFP
● Hot Pluggable
● Operating case temperature:
FTCS-2T133G-10D : 0 ℃to 70℃
FTCS-2T133G-10DI : -40 ℃to 85℃
APPLICATIONS
● High-density Video Routers

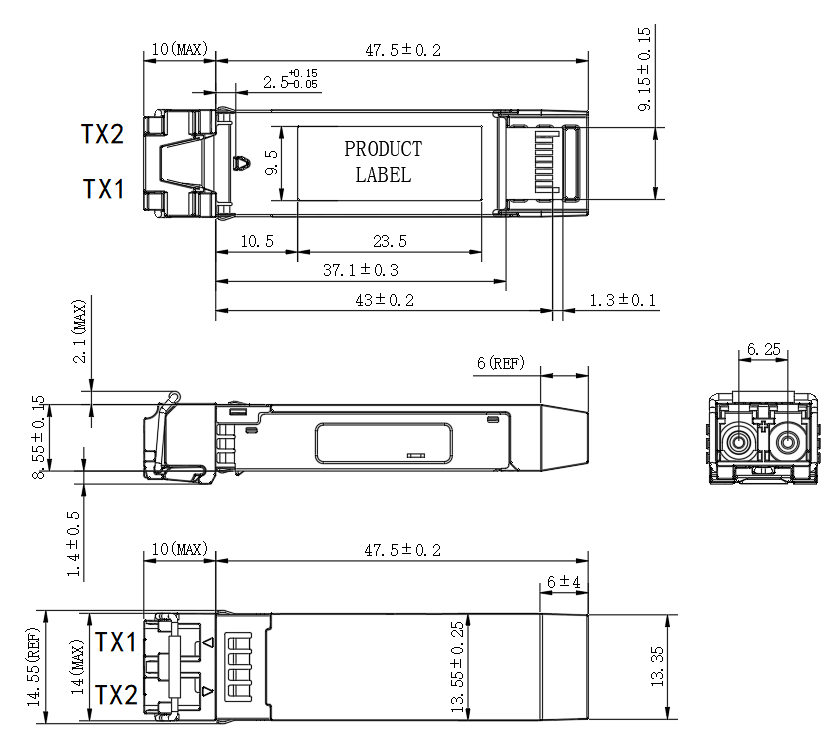

Mechanical Dimensions
NOTE: Unspecified tolerance: ± 0.25mm
Ordering Information
|
P/No. |
Wavelength(nm) |
2 TX Power(dBm) |
Package |
Bit Rate(Mb/s) |
Dist.(km) |
Volt.(V) |
Temp.(℃) |
DDM |
|
FTCS-2T133G-10D |
1310 |
-5 to 0 |
LC |
50~3000 |
10 |
3.3 |
0 ~70 |
YES |
|
FTCS-2T133G-10DI |
1310 |
-5 to 0 |
LC |
50~3000 |
10 |
3.3 |
-40 ~85 |
YES |
注：本产品有全国产化型号可选
本产品为Video SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
