标准光模块

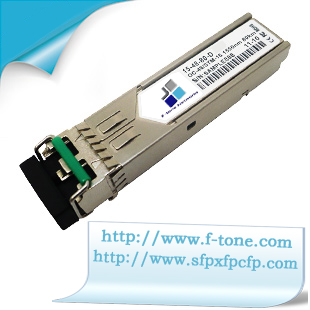

SFP-4.25G-1550NM
Specifications
- 产品型号: FTCS-1524-XXX
- 兼容品牌: 全系列
- 封装类型: SFP
- 传输速率: Operating Data Rate up to 4.25Gbps
- 传输距离: 40KM~160KM可选
- 发射波长: 1550nm
- 接收波长: 1550nm
- 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
- 数字诊断: 带DDM/不带DDM 可选
- 接收灵敏度: 40KM~160KM可选
- 接收灵敏度: 40KM~160KM可选
Description
Features
Single 3.3 V supply
Supports 1.0625/2.125/4.25Gb/s Fibre Channel Operation
Gigabit Ethernet compatible
1550nm DFB Laser
SFP MSA SFF-8074i compliant
Digital Diagnostic SFF-8472 compliant
Compatible with RoHS
Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
• Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fibre Channel
• 1.25Gbp/s 1000Base-LX Ethernet and 1000Base-LX10 (Rate selectable version)
Description
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are compatible with Fibre Channel per FC-PI-2 Rev. 10.0. also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3.
| Part No. | Description |
| FTCS-1542-20 | SFP,4.25G, Single mode (1550nm,20km,LC,Temperature:0 ~+70℃ ) |
| FTCS-1542-20I | SFP,4.25G, Single mode (1550nm,20km,LC,Temperature:-40~+85℃) |
| FTCS-1542-20D | SFP,4.25G, Single mode (1550nm,20km,LC,Temperature:0 ~+70℃,DDM) |
| FTCS-1542-20DI | SFP,4.25G, Single mode (1550nm,20km,LC,Temperature:-40~+85℃,DDM) |
| FTCS-1542-40 | SFP,4.25G, Single mode (1550nm,40km,LC,Temperature:0 ~+70℃ ) |
| FTCS-1542-40I | SFP,4.25G, Single mode (1550nm,40km,LC,Temperature:-40~+85℃) |
| FTCS-1542-40D | SFP,4.25G, Single mode (1550nm,40km,LC,Temperature:0 ~+70℃,DDM) |
| FTCS-1542-40DI | SFP,4.25G, Single mode (1550nm,40km,LC,Temperature:-40~+85℃,DDM) |
| FTCS-1542-60 | SFP,4.25G,Single mode (1550nm,60km,LC,Temperature:0 ~+70℃) |
| FTCS-1542-60I | SFP,4.25G, Single mode (1550nm,60km,LC,Temperature:-40~+85℃) |
| FTCS-1542-60D | SFP,4.25G,Single mode (1550nm,60km,LC,Temperature:0 ~+70℃,DDM) |
| FTCS-1542-60DI | SFP,4.25G, Single mode (1550nm,60km,LC,Temperature:-40~+85℃,DDM) |
| FTCS-1542-80 | SFP,4.25G,Single mode (1550nm,80km,LC,Temperature:0 ~+70℃) |
| FTCS-1542-80I | SFP,4.25G, Single mode (1550nm,80km,LC,Temperature:-40~+85℃) |
| FTCS-1542-80D | SFP,4.25G,Single mode (1550nm,80km,LC,Temperature:0 ~+70℃,DDM) |
| FTCS-1542-80DI | SFP,4.25G, Single mode (1550nm,80km,LC,Temperature:-40~+85℃,DDM) |
| FTCS-1542-100 | SFP,4.25G,Single mode (1550nm,100km,LC,Temperature:0 ~+70℃) |
| FTCS-1542-100I | SFP,4.25G, Single mode (1550nm,100km,LC,Temperature:-40~+85℃) |
| FTCS-1542-100D | SFP,4.25G,Single mode (1550nm,100km,LC,Temperature:0 ~+70℃,DDM) |
| FTCS-1542-100DI | SFP,4.25G, Single mode (1550nm,100km,LC,Temperature:-40~+85℃,DDM) |
| FTCS-1542-120 | SFP,4.25G,Single mode (1550nm,120km,LC,Temperature:0 ~+70℃) |
| FTCS-1542-120I | SFP,4.25G,Single mode (1550nm,120km,LC,Temperature:-40~+85℃) |
| FTCS-1542-120D | SFP,4.25G,Single mode (1550nm,120km,LC,Temperature:0 ~+70℃,DDM) |
| FTCS-1542-120DI | SFP,4.25G,Single mode (1550nm,120km,LC,Temperature:-40~+85℃,DDM) |
| FTCS-1542-160 | SFP,4.25G,Single mode (1550nm,160km,LC,Temperature:0 ~+70℃) |
| FTCS-1542-160I | SFP,4.25G,Single mode (1550nm,160km,LC,Temperature:-40~+85℃) |
| FTCS-1542-160D | SFP,4.25G,Single mode (1550nm,160km,LC,Temperature:0 ~+70℃,DDM) |
| FTCS-1542-160DI | SFP,4.25G,Single mode (1550nm,160km,LC,Temperature:-40~+85℃,DDM) |
Notice:
The above is just list out our regular product information, if you can’t find out the products which you need from the form, Please contact our sales.
For more information，Please mail to sales#F-tone.com (Please @ instead of #)
