SFP28LAN-WDM I-Temp32G FC40Km (FTCS-1325G-40Dxx)
Description
Description
This product is a 32G FC SFP28 transceiver designed for optical communication compliant with 25GE and 32G FC standard. Its high performance cooled EML transmitter and high sensitivity APD receiver provide superior performance for 25GE and 32G FC application up to 40km (with FEC) Links.
The product is designed with SFP28 form factor, which is the optical/electrical connection according to the SFP+ Multi-Source Agreement (MSA).
Features
● Hot-pluggable SFP28 form factor
● Supports 24.33/25.78Gb/s aggregate bit rate
● Supports 28.05Gb/s aggregate bit rate
● Transmitter: cooled 25Gb/sEML TOSA
● Receiver: 25Gb/s APD ROSA
● Internal CDR circuits on both receiver and transmitter channels
● 1.8W maximum power dissipation
● Maximum link length of 40Km over SMF
● Duplex LC receptacle
● Single 3.3V power supply
● RoHS compliant (2011/65/EU, lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● CPRI Option 10
● 25G Ethernet
● 32G FC

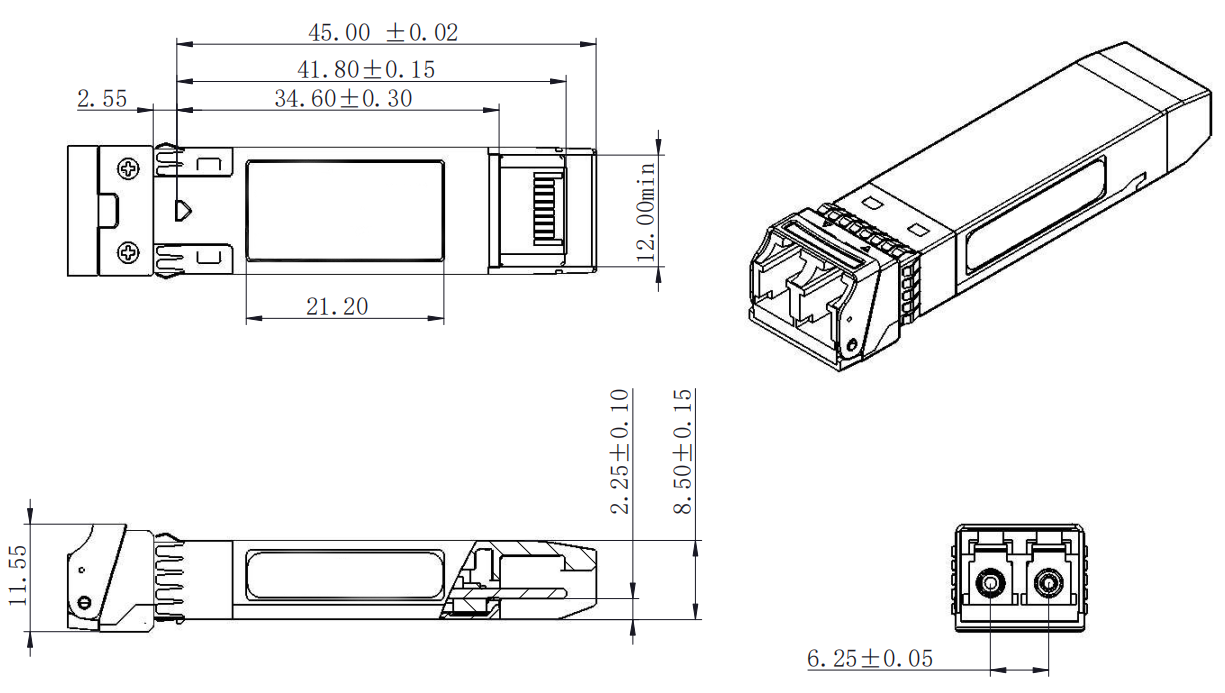

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-1325G-40D |
1310nm, SFP28, EML, 25G Ethernet, CPRI, 30KM/40km, 0ºC ~ +70ºC |
|
FTCS-1325G-40DI |
1310nm, SFP28, EML, 25G Ethernet, CPRI, 30KM/40km, -40ºC ~ +85ºC |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
