SNAP12四路并行光收发一体模块
Description
功能概述
● 4路发送、4路接收并行光纤通道
● 850nm VCSEL/PD阵列技术
● 高速数据差分信号I/O口兼容CML/LVDS/PECL电平
● 50um多模扁带光纤
● 3.3V单电源供电
● 宽工作温度：-40℃～+85℃
● 紧凑的结构设计, 高密度高容量
适用范围
主要应用于支持甚短距离的高速数据通信连接、服务器与存储器阵列的互连、4通道高速串行数据流。
主要性能指标
| 传输速率(Gbps) | 4*3.125 | 4*6.25 | 4*10.3125 |
| 输出光功率(dBm) | ≥-5 | ≥-5 | ≥-5 |
| 消光比(dB) | ≥5 | ≥4 | ≥3 |
| 接收灵敏度(dBm) | ≤-14 | ≤-12 | ≤-10 |
| 中心波长(nm) | 850 | ||
| 电源电压(V) | DC +3.3 | ||
| 光接口类型 | MPO插拔型 | ||
| 电接口类型 | MEG-Array 10x10 | ||
| 工作温度(℃) | -40～+85 | ||
订购信息
| 型号 | 传输速率 | 工作温度 |
| FT-850M03GQ | 4*3.125Gbps | -40℃～+85℃ |
| FT-850M06GQ | 4*6.25Gbps | -40℃～+85℃ |
| FT-850M10GQ | 4*10.3125Gbps | -40℃～+85℃ |

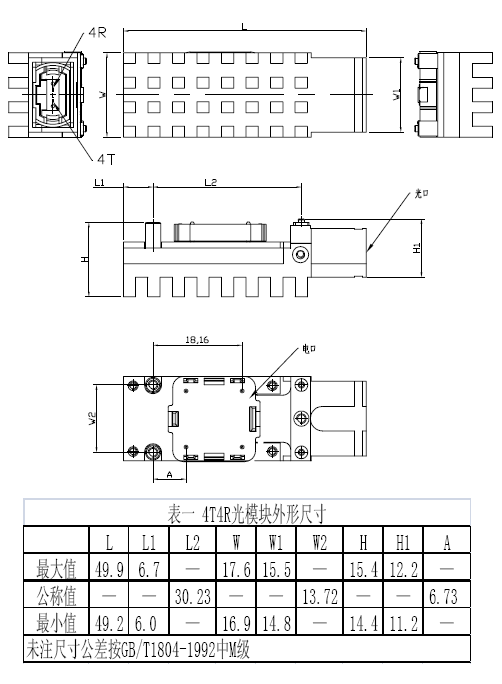

结构尺寸图
注：单位为毫米，未做标示的公差为±0.1mm。
