CWDM/DWDM DFB激光器小型模块化
Description
CWDM/DWDM DFB激光器小型模块化

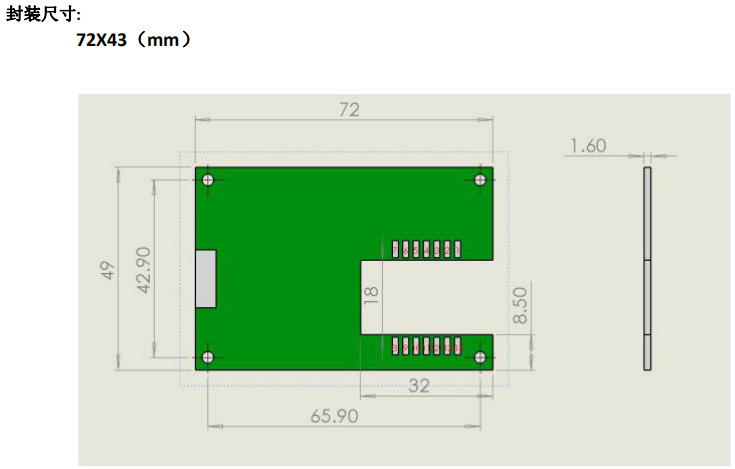

北亿纤通光电分布反馈激光器采用标准 14 针蝶形封装成的小型化模块,内置温控,热敏电阻,监控光电二极管,光隔离器(可选配)串口可调谐,激光器可在不同的环境温度下正常工作,输出的波长和光功率具有高度的稳定性;输出波长 1270-1610nm (间隔20mm的CWDM波长)以及DWDM 波长(详见 ITU表),输出光功率 10mw~20mw 可选。可根据客户的要求定制生产更高性能的激光器。
特性:
|
应用:
|
工作温度（多种温度级别可选）：
● 商用级：0~+7度
● 扩展级：-10~+80度
● 工业级：-40~+85度
● 军品级：-55~+85度

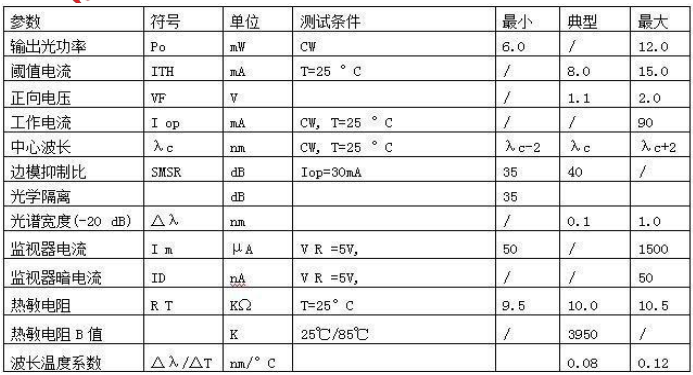

级值参数:
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
