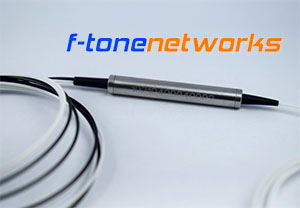

T1550/R1310&1490 FWDM
Description
T1550/R1310&1490
波分复用器是一种面向城域网接入层的低成本WDM传输技术。从原理上讲，CWDM就是利用光复用器将不同波长的光信号复用至单根光纤进行传输，在链路的接收端，借助光解复用器将光纤中的混合信号分解为不同波长的信号，连接到相应的接收设备。
详细说明
|
产品特点： |
应用范围： |
性能指标
|
透射工作波长(nm) |
1540~1560 |
|
|
反射工作波长1(nm) |
1260 ~ 1360 |
|
|
反射工作波长2(nm) |
1480~1500 |
|
|
插入损耗(dB) |
反射 |
≤0.6 |
|
透射 |
≤0.8 |
|
|
插入损耗平坦性(dB) |
<0.3 |
|
|
隔离度(dB) |
反射 |
> 15 |
|
透射 |
>30 |
|
|
PDL (dB) |
<0.1 |
|
|
PMD (ps) |
<0.1 |
|
|
方向性(dB) |
>50 |
|
|
回损(dB) |
>50 |
|
|
最大功率(mW) |
500 |
|
|
工作温度(℃) |
0 ~+70 |
|
|
存储温度(℃) |
-40 ~+85 |
|
|
封装尺寸(mm) |
1. Φ5.5 x L35(祼纤) |
|
注：在常温条件下，不包括连接器，熔接器及端面损耗
订购信息
|
产品 |
波长 |
尾纤类型 |
光纤长度 |
连接头 |
|
FWDM |
4/35=1490透射/1310&1550反射 |
1=250um祼纤光纤 |
1=1m |
0=None |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
