USB 3.1 Active Optical Cables

Description
The F-tone Networks USB 3.1 AOC Cable is a kind of Active Optical Cable (AOC) used to extend the transmission distance between USB Hosts and Devices and consisted of two USB 3.1 Standard-A connectors. The transmission distance can be up to 50m (115ft) through a hybrid cable consisting of two optical fibers and two copper wires. The high-speed up to 10Gbps signal is transmitted and received through the optical multimode fibers, while the power is transmitted through the copper wires from host to device (see figure 1).

Features
● Extend USB 3.1 Super Speed+ devices up to 50m over fiber optics(MMF)
● Compliant to link with all USB 3.1 A-type Form-factor
● Compliant with USB3.0 version
● 850nm VCSEL transmitter, PIN photo-detector receiver
● Data rate: up to 10Gbps
● Plug and play, no software to be installed
● Number of devices can be increased using additional hubs
● Integrated USB power-bus
● Low power consumption
● Operating case temperature:
     Standard : 0 to +70°C
     Industrial : -40 to +85°C
● All-metal housing for superior EMI performance
● RoHS compliant (lead free)

Applications
● Industrial Control
● Data copy for disk
● Digital Signage
● Home Network Integration
● Medical Device Connectivity
● KVM Extension
● Remote Desktop USB 3.1 Connections
● Security: web camera, access control
● USB 3.1 Devices Sharing: print, scan, storage

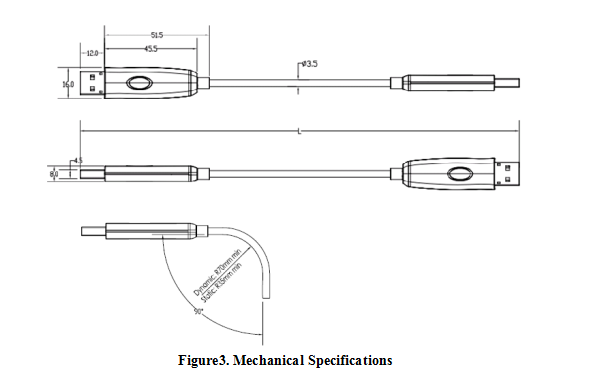

Mechanical Specifications

Ordering information

注：本产品有全国产化型号可选
本产品仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
