标准光模块
10Gb/s SFP+ CWDM 20km 光模块(1270~1450)
Description
10Gb/s SFP+ CWDM 20km 光模块(1270~1450)
描述
北亿纤通的FTCS-Cxx1X-20Dxx（1270~1450）SFP+光模块设计用于单模光纤上长达20km的万兆以太网链路。该模块由CWDM DFB激光器、PIN和前置放大器组成一个高度集成的光学子组件。数字诊断功能可通过SFF-8472中规定的2线串行接口获得。
FTCS-Cxx1X-20Dxx（1270~1450）光模块提供独特的增强型数字诊断监测接口，可实时访问设备运行参数，如光模块温度、激光偏置电流、传输光功率、接收光功率和光模块电源电压。它还定义了一个复杂的警报和警告标志系统，当特定的操作参数超出工厂设定的正常范围时，该系统会向最终用户发出警报。
SFP+MSA在EEPROM中定义了一个256字节的内存映射，可通过8位地址1010000X（A0h）的2线串行接口进行访问。数字诊断监控接口使用8位地址1010001X（A2h），因此最初定义的序列号内存映射保持不变。
特征
● 高达11.3Gb/s的数据链路
● CWDM DFB发射机和PIN接收机
● 9/125µm SMF上可达20公里
● 可热插拔SFP+占地面积
● 双工LC/UPC型可插拔光接口
● 符合RoHS-10标准且无铅
● 支持数字监控接口
● 单路+3.3V电源
● 符合SFF+MSA和SFF-8472
● 金属外壳，用于降低EMI
● 满足ESD要求，抗8KV直接接触电压
● 外壳工作温度
商业：0~+70℃
扩展：-10～+80℃
工业：-55~+85℃
应用
● 10GBASE-LR/LW和10G以太网
● SDH STM64
● 其他光链路

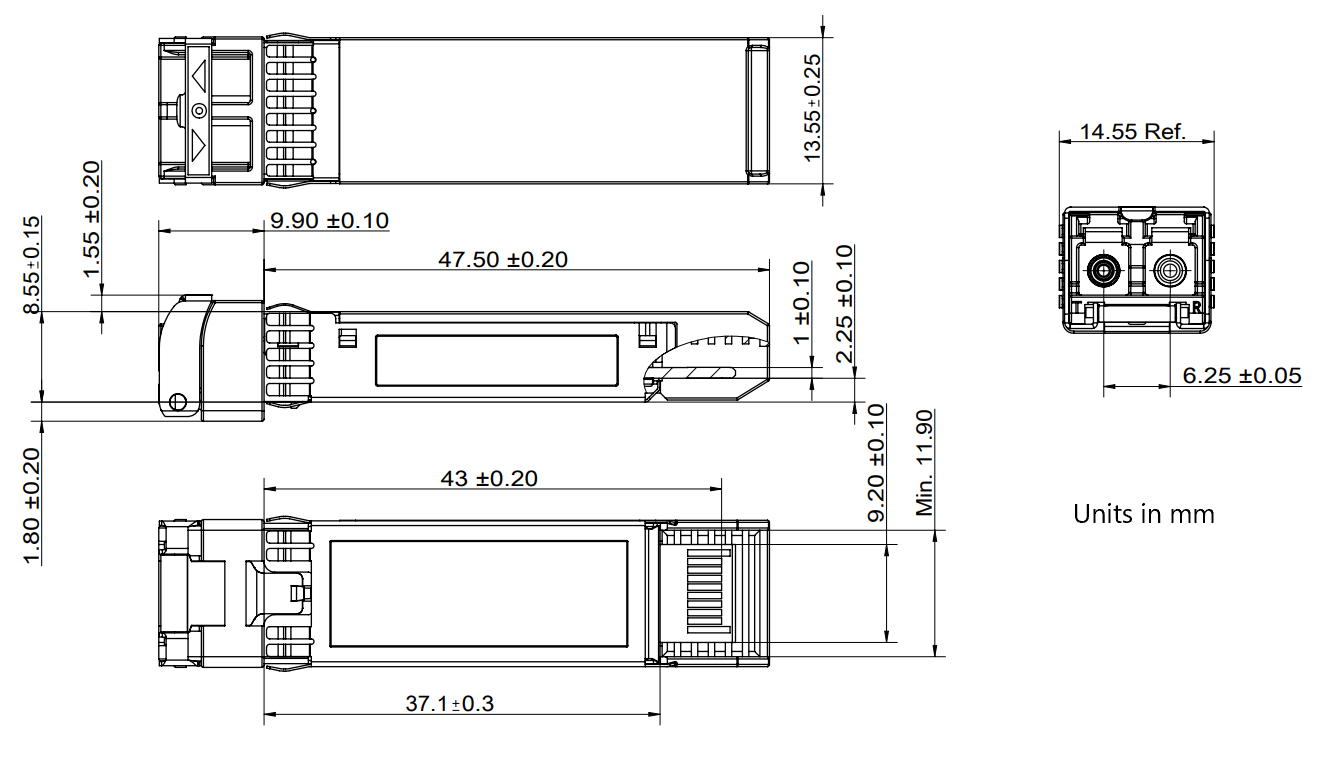

机械尺寸
订购信息
|
产品型号 |
速率 (Gb/s) |
|
传输距离(km) |
温度 (℃) (级别) |
|
FTCS-Cxx1X-20D |
10.3125 |
Refer to wavelength selection |
20 |
0~70 commercial |
|
FTCS-Cxx1X-20DE |
10.3125 |
20 |
-10~80 extended |
|
|
FTCS-Cxx1X-20DI |
10.3125 |
20 |
-55~85 Industrial |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为SFP+ CWDM系列光模块，如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
