1.25G Transceiver Module

Product Description
F-tone Networks’s FTRC-xx12-xxx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.25Gbps. The module is fully compliant with Small Form-Factor Transceiver.These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications.

Product Features
● VCSEL/FP/DFB Laser Diode Transmitter
● Up to 0.55Km on 62.5/125μm MMF，Up to 100 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Inputs and CML Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● Fiber Channel Switch Infrastructure
● Gigabit Ethernet Switches and Routers
● Other optic link

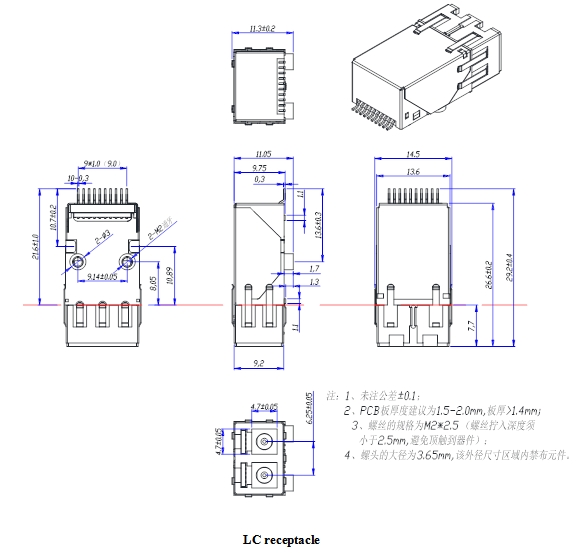

Module Outline Drawing（Units in mm)
Order Information

注：本产品有全国产化型号可选

本产品为FTRC系列，仅展示部分参数，如有需要，请联系我们。
