1.25Gb/s Compact SFP 80km Optical Transceiver Module

Description
F-tone Networks’CSFP-OC24-80Ax Small Form Factor Pluggable (CSFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of 2-channel Bi-directional Optical Transceiver unit with five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 80km in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Conventional SFP will function when plugged into a C-SFP socket, at the same time no damage to C-SFP and host board if C-SFP module is plugged into a conventional SFP s℃ket

Features
● Up to 1.25Gb/s data links
● 1490nm DFB laser transmitter and PIN photo-detector
● Achieve operational compatibility with conventional SFP
● Up to 80km on 9/125µm SMF
● Hot-pluggable CSFP footprint
● BIDI LC/UPC type pluggable optical interface
● Low power dissipation
● RoHS compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472
● Metal enclosure, for lower EMI
● Meet ESD requirements, resist 8KV direct contact voltage
● Case operating temperature
Commercial: 0 ~ +70℃
Extended: -10 ~ +80℃
Industrial: -40 ~ +85℃

Applications
● Switch to Switch Interface
● Gigabit Ethernet
● Point to Point FTTH Application
● Switched Backplane Applications
● Router/Server Interface
● Other Optical Links

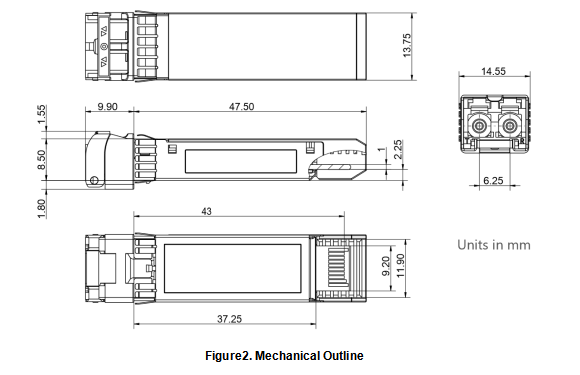

Mechanical Dimensions

Ordering information

注：本产品有全国产化型号可选

本产品为CSFP系列光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
