1×9 155Mbps DDM Transceiver Module
Description
1×9 155Mbps DDM Transceiver Module
Product Description
F-tone’s FTTR-M1303-02DI-JY series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 200Mbps. The module is fully compliant with the Multi-sourced 1x9 protocol.These transceiver modules provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps/125Mbps rate and SONET/OC-3, SDH/STM-1 for Telecommunication.
Product Features
● FP/DFB Laser Diode Transmitter
● Up to 5 Km on 62.5/125μm MMF，Up to 120 Km on 9/125μm SMF
● Digital diagnostic monitoring
● Single 3.3V power supply
● SC/ST/FC duplex optical connector
● LVPECL Differential Inputs and Outputs and LVTTL signal detect
● Compliant with SFF-8472 v9.3
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● ATM 155Mbps
● SONET/SDH
● 100Mbps Ethernet Equipments
● Other Optic Link

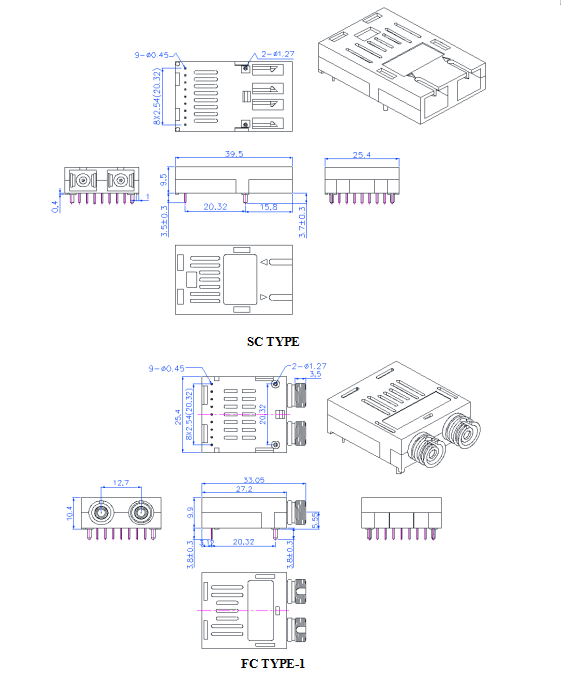

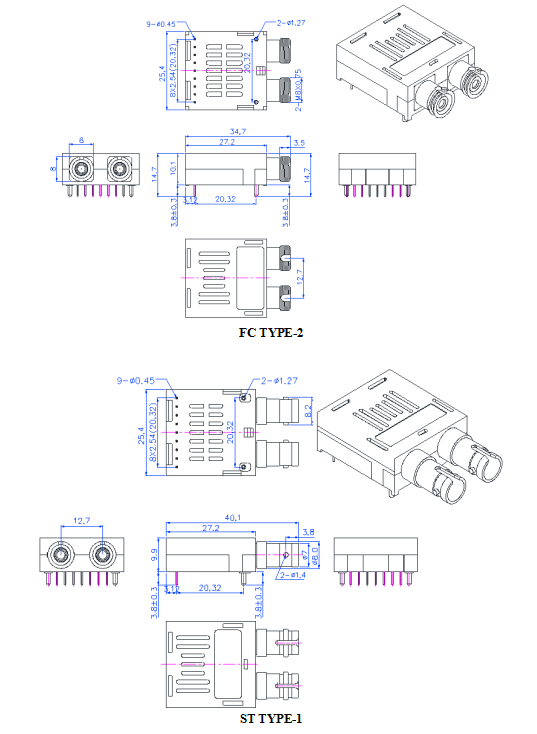

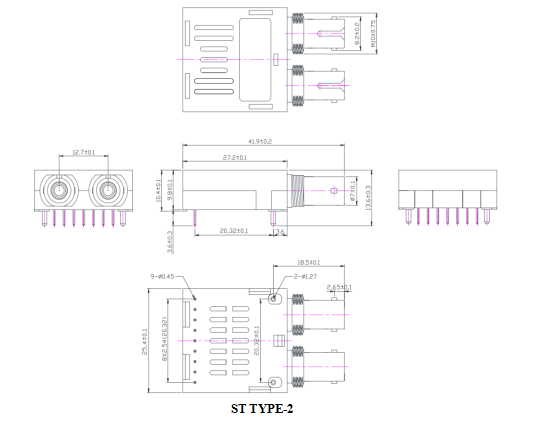

Module Outline Drawing
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
