155Mbps 1 x 9 MM Transceiver Module

Product Description
F-tone’s FTTR-BMxx03-02xx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 155Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provides the system designer with products to implement a range of FDDI and ATM designs at the 155Mbps rate and SONET/OC-3, SDH/STM-1 for Telecommunication.Commerce level transceiver module which operating at 0℃ to 70℃ for available.

Product Features
● Multi-sourced 1 x 9 pin packaged
● 1310nm FP, 1550nm FP Laser Transmitter
● SC /FC/ST single receptacle
● Up to 5Km with 62.5/125μm MMF
● Single 3.3V, 5V, 3.3V/5.0V power supply
● PECL signal input and output
● Wave solderable and washable with process plug inserted
● Operating case temperature:
     Standard : 0 to +70°C
     Industrial : -40 to +85°C

Application
● ATM equipments
● SONET/OC-3、SDH/STM-1 equipments
● 100Mbps Fast Ethernet equipments

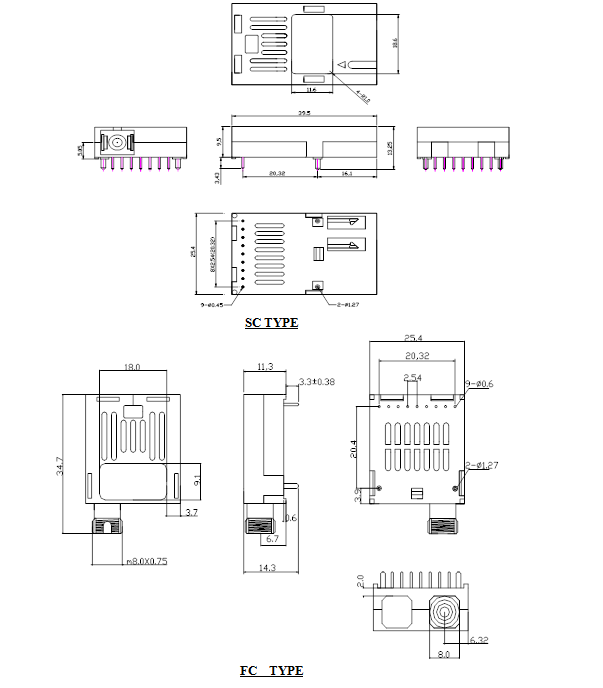

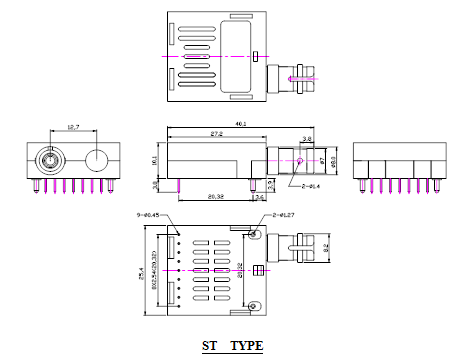

Module Outline Drawing

Ordering information

注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
