1×9 2M~84Mbps Transceiver Module
Description
1×9 2M~84Mbps Transceiver Module
Product Description
F-tone’s FTTR-xxLx-xxx series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates 2M to 84Mbps. The module is fully compliant with the Multi-sourced 1x9 protocol.
Product Features
● VCSEL/FP/DFP Laser Diode Transmitter
● Up to 2 Km on 62.5/125μm MMF，Up to 120Km on 9/125μm SMF
● 3.3V, 5V power supply
● SC/ST/FC duplex optical interface
● (LV)TTL Inputs / Outputs and or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

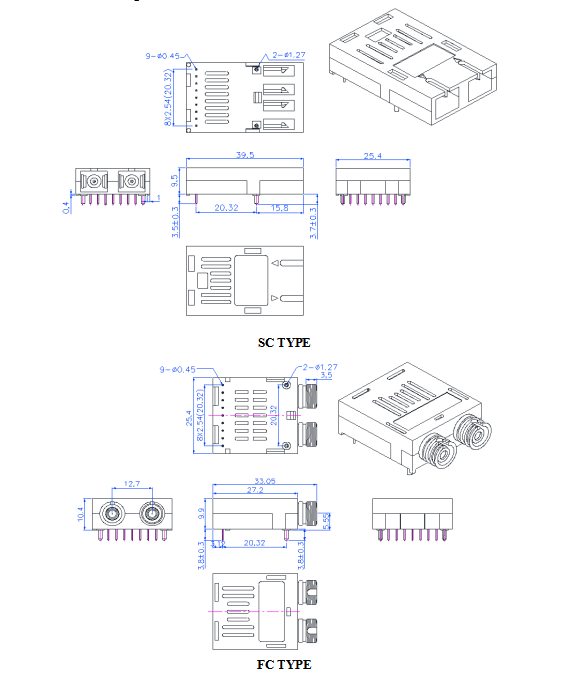

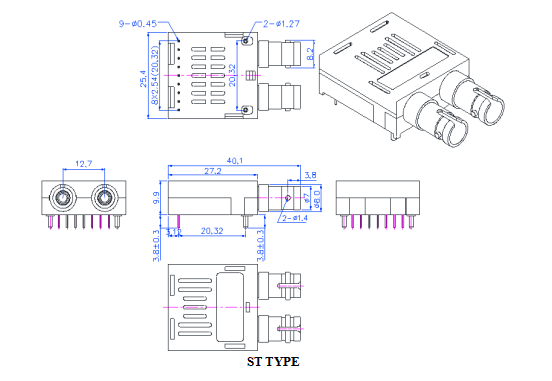

Module Outline Drawing
0-2M Ordering information
|
产品型号 |
基本参数 |
-可选配参数 |
|
FTTR-M13L1-02 |
1x9-0~10M-MM1310-2KM |
3S: 3.3V-SC接头； 3F: 3.3V-FC接头； 3T: 3.3V-ST接头； 5S: 5V-SC接头； 5F: 5V-FC接头； 5T: 5V-ST接头； |
|
FTTR-85L1-02 |
1x9-0~2M-MM850-2KM |
|
|
FTTR-13L1-20 |
1x9-0~2M-SM1310-20KM |
|
|
FTTR-13L1-40 |
1x9-0~2M-SM1310-40KM |
|
|
FTTR-13L1-60 |
1x9-0~2M-SM1310-60KM |
|
|
FTTR-15L1-80 |
1x9-0~2M-SM1550-80KM |
|
|
FTTR-15L1-H2 |
1x9-0~2M-SM1550-120KM |
|
|
FTTR-CxxL1-40 |
1x9-0~2M-CWDM-40KM |
|
|
FTTR-CxxL1-80 |
1x9-0~2M-CWDM-80KM |
|
|
FTTR-CxxL1-H2 |
1x9-0~2M-CWDM-120KM |
|
|
FTTR-M13L1-02I |
1x9-0~2M-MM1310-2KM-工业级 |
|
|
FTTR-85L1-02I |
1x9-0~2M-MM850-2KM-工业级 |
|
|
FTTR-13L1-20I |
1x9-0~2M-SM1310-20KM-工业级 |
|
|
FTTR-13L1-40I |
1x9-0~2M-SM1310-40KM-工业级 |
|
|
FTTR-13L1-60I |
1x9-0~2M-SM1310-60KM-工业级 |
|
|
FTTR-15L1-80I |
1x9-0~2M-SM1550-80KM-工业级 |
|
|
FTTR-15L1-H2I |
1x9-0~2M-SM1550-120KM-工业级 |
|
|
FTTR-CxxL1-40I |
1x9-0~2M-CWDM-40KM-工业级 |
|
|
FTTR-CxxL1-80I |
1x9-0~2M-CWDM-80KM-工业级 |
|
|
FTTR-CxxL1-H2I |
1x9-0~2M-CWDM-120KM-工业级 |
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
