2.488Gbps Compact Bi-Di SFP Transceiver, 20km Reach (1490nm TX / 1310 nm RX)
Description
2.488Gbps Compact Bi-Di SFP Transceiver, 20km Reach
Description
The CSFP transceivers are high performance, cost effective modules supporting 2.488Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
● Support 2.488Gbps data links
● 1490nm DFB laser and PIN photodetector for 20km transmission
● 2xBi-directional transceivers in 1 SFP transceiver package
● Compliant with CSFP MSA Option 2 and SFF-8472
● Digital Diagnostic Monitoring:Internal Calibration or External Calibration
● Compatible with SONET OC-48 system
● Compatible with RoHS
● +3.3V single power supply
● Operating case temperature:
0 to +70°C(Commercial)
-40°C to +85°C (Industrial)
Applications
● SDH STM-16 and SONET OC-48 system
● Fiber Channel
● Switch to Switch interface
● Point to Point FTTH Application
● Other optical transmission systems

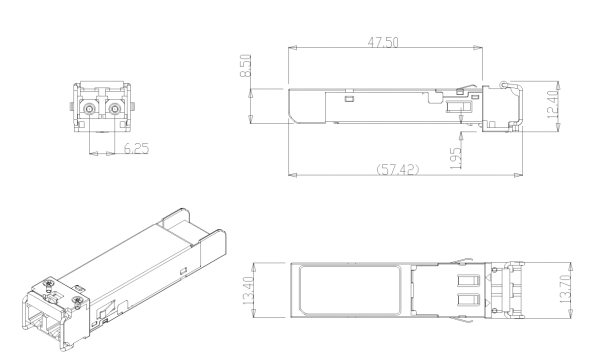

Mechanical Dimensions
产品型号：CSFP-OC48-20BX
注：本产品有全国产化型号可选
本产品为CSFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
