1 x 9 84Mbps MM Transmitter Module

Product Description
F-tone’s FLTX-XX02-XX series of receiver modules are the perfect solution for Low-speed communication networks.The transmitter modules support data rates up to 84Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.The transmitter modules supplies the 3.3/5 Voltage and provides the system designer with products to implement a range of low-speed data at the 2 Mbps to 84Mbps rate for fiber communications.

Product Features
● Multi-sourced 1 x 9 pin packaged
● 850nm/1310nm Laser Transmitter
● SC/FC/ST/PC single receptacle
● Up to 0~5Km with 62.5/125μm MMF
● Single 3.3/5V power supply
● TTL or LVTTL signal output
● Wave Solderable and washable with process plug inserted
● Excellent EMI and ESD protection
● Operating Temperature Range
      -40℃ to +85℃
      0℃ to +70℃

Application
● WDM 52Mb/s Links
● PDH,SDH equipments

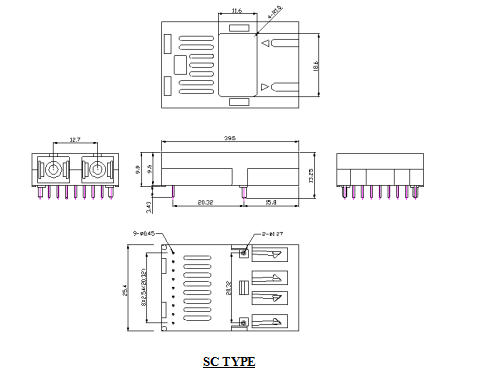

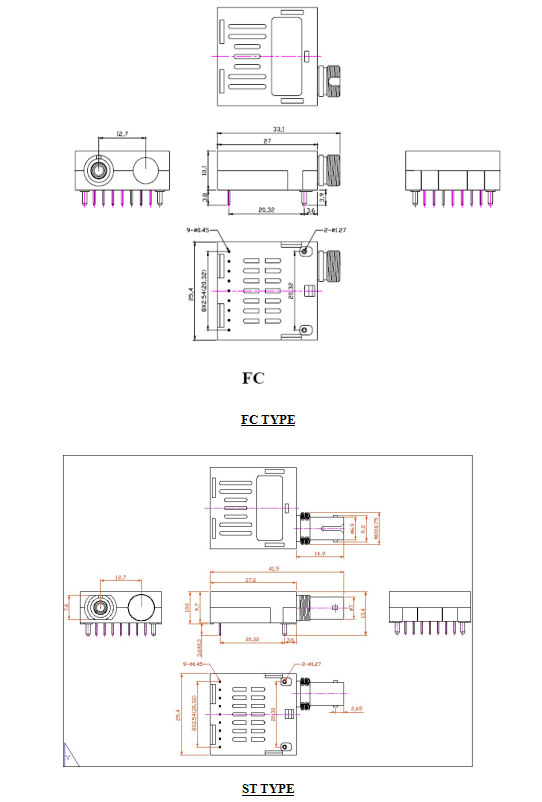

Module Outline Drawing

Ordering information

注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
