10.3Gb/s SFP+ Transceiver

F-tone Networks's FTCP-131X-10D Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431,SFF-8432 and support SONET OC-192 /SDH STM-64 .It is designed for use in 10G-Gigabit multi-rate links up to 10km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472

Product Features
● Commercial(0~70℃)
● Industrial(-40~85℃) Yes
● Duplex LC connector
● Hot-pluggable SFP footprint
● Uncooled 1310nm DFB laser
● RoHS compliant and Lead Free
● Distance up to 10km on 9/125um SMF
● Metal enclosure for lower EMI
● Built-in dual CDR
● Power dissipation <1.0W (0~70℃)<1.5W(-40~85℃)
● Commercial and industrial operating temperature optional
● SFP MSA SFF-8472 SFF-8431 SFF-8432 Compliant

Applications
● 10GBASE-LR/LW
● 10G Fibre Channel
● SONET OC-192 /SDH STM-6

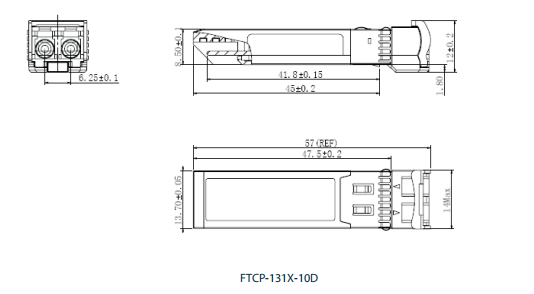

Mechanical Specifications
F-tone Networks's Small Form Factor Pluggable (SFP+) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA) , dimensions are in mm.

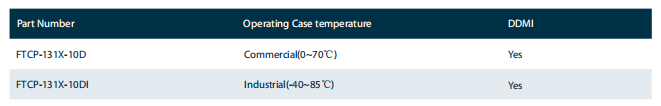

Product Selection

注：本产品有全国产化型号可选

本产品为SFP+系列，仅展示部分参数，如有需要，请联系我们。
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
