2.488Gbps 2X10 SFF SM Transceiver

Product Description
F-tone’s FTBF-xx24-xxseries of transceiver modules are the perfect solution for high-speed communication networks. FTBF-xx24-xxseries modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications. F-tone’s FTBF-xx24-xxSmall Form Factor (SFF) transceivers comply with the 2X10 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). They also comply with SONET OC-48 (SDH STM-16) standards2. The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5. The modules provide a uniform factor for a wide variety of standard connections to transmission media. The converters can be inserted or removed from a host chassis without removing power from the host system. F-tone’s FTBF-xx24-xxSFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.

Product Features
● 1310nm or 1550nm wavelength Laser Transmitter
● Up to 40 Km on 9/125μm SMF
● Single 3.3V power supply
● Standard 2X10 pin footprint (MSA Compliant)
● Operating case temperature range(Standard：0 to+70℃) or (Industrial： -40°C to +85°C))
● Duplex LC connector
● CML Signal Input / Output
● TTL Signal Detect
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)

Application
● ATM
● SONET/SDH
● Fast Ethernet
● Other optic link

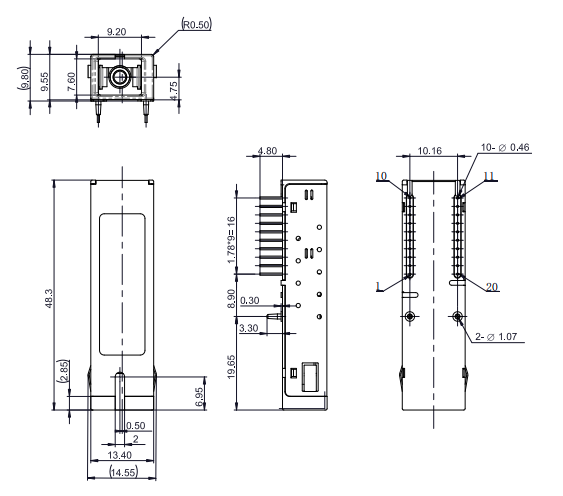

Assignment & Signal Definition

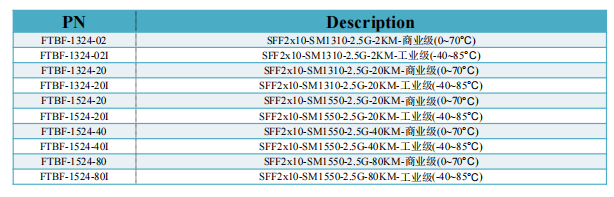

Ordering information

注：本产品有全国产化型号可选

本产品为FTBF系列，仅展示部分参数，如有需要，请联系我们。
