100G Mini DWDM Products specification
Description
100G Mini DWDM Products specification
Description
Dense wavelength division multiplexer (DWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
F-tone Networks makes full range of DWDM products, including 50Ghz, 100Ghz and 200Ghz. Due to our rich experience of manufacturing, we make DWDM with extremely low loss and high stability and reliability. Different packages and customized package can be offered with request. Common DWDM products package include: bare single DWDM device packed in glass tube or stainless steel tube, DWDM Mux Demux modules packed in ABS box up to 16-channel or even 20-channel Multiplexing on a single fiber or DWDM modules packed in standard 19” 1U rackmount. We can also take “Skip Component” in a DWDM Mux/Demux module to reduce the total IL as an option.
Performance Specifications for 100Ghz DWDM
|
Parameter |
4 Channel |
8 Channel |
16 Channel |
|
|
Channel Wavelength (nm) |
C-Band |
|||
|
Center wavelength Accuracy (nm) |
±0.1 |
|||
|
Channel Spacing (Ghz) |
100Ghz |
|||
|
Channel Passband (nm) |
100G: ±0.11（Min） |
|||
|
Insertion Loss (dB) |
≤1.5 |
≤1.8 |
≤2.5 |
|
|
Isolation (dB) |
Adjacent |
>30 |
||
|
Non-adjacent |
>40 |
|||
|
Inertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
|||
|
Wavelength Temperature Shifting (nm/℃) |
<0.002 |
|||
|
Polarization Dependent Loss (dB) |
<0.3 |
|||
|
Directivity (dB) |
>50 |
|||
|
Return Loss(dB) |
>45 |
|||
|
Maximum Power Handling (mW) |
300 |
|||
|
Opterating Temperature (℃) |
-5~+75 |
|||
|
Storage Temperature (℃) |
-40~+85 |
|||
|
Package dimension (mm) |
L25 x W10.8x H6.5 |
L25.8 x W14.4 x H6.5 |
L30xW23xH6.5 |
|
Specification may change without notice.
Above specification are for device without connectors.

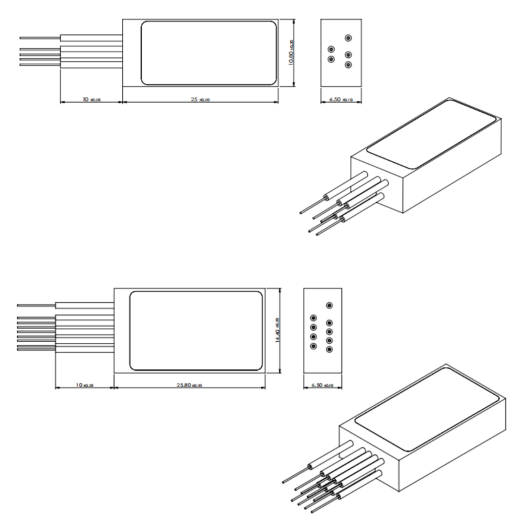

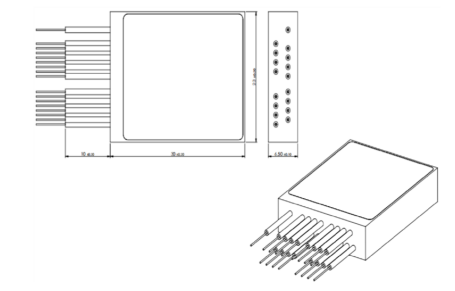

Dimension:
Ordering Information
|
DWDM |
X |
XX |
X |
XX |
X |
X |
XX |
|
|
Channel Spacing |
Number of Channels |
Configuration |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
5=50G |
04=4 Channel |
M=Mux |
01=C01 |
1=Bare fiber |
1=1m |
0=None |
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
