标准光模块
10G SFP+ER SM 光模块
Description
10G SFP+ER SM 光模块
产品描述
F-tone Networks的FTCS-151X-40xx光模块是高速通信网络的完美解决方案。光模块支持高达10.3Gbps的数据速率。该模块完全符合小型可插拔（SFP+）收发器多源协议（MSA）。光模块为系统设计者提供10GBASE-ER/EW、SONET OC-192和其他光纤通道应用。
产品特点
● EML激光二极管发射器
● 9/125μm SMF上长达40公里
● 3.3V电源
● LC双工光接口
● CML差分输入/输出和LVTTL信号检测
● 1级激光国际安全标准IEC 825
● 工作情况温度范围（标准：0至+70℃）或（工业：-40°C至+80°C）
应用
● 10GBASE-ER/EW
● SONET OC-192
● 其他光纤通道

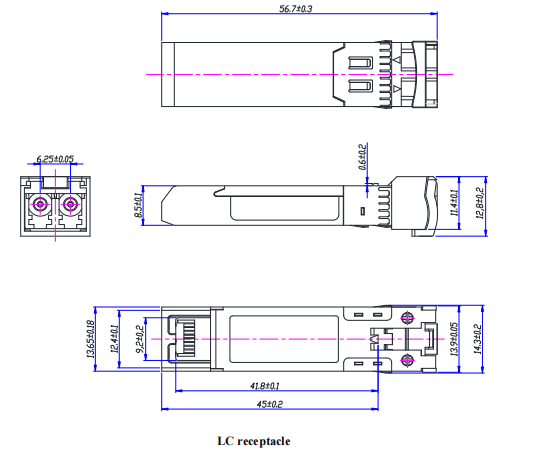

机械尺寸：
订购信息
|
产品型号 |
类型 |
波长(nm) |
传输距离(Km) |
温度(℃) |
|
FTCS-151X-40 |
SM |
1550(EML ) |
40 |
0~70℃ |
|
FTCS-151X-40I |
SM |
1550(EML ) |
40 |
-40~85℃ |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
