10Gb/s 1550nm 100km with CDR SFP+ Transceiver
Description
10Gb/s 1550nm 100km with CDR SFP+ Transceiver
Features
● Up to 11.1Gbps Data Links
● Up to 100km transmission on SMF
● EML transmitter and APD receiver
● Metal enclosure, for lower EMI
● Hot-pluggable SFP+ footprint
● 2-wire interface with integrated Digital Diagnostic monitoring
● Build in CDR on both TX and RX
● Compliant with SFP+ MSA with LC connector
● Single 3.3V power supply
● Power dissipation < 1W
● Case operating temperature range:
-5°C to 70°C
-20°C to 85°C
-40°C to 85°C
Applications
● 10GBASE-ZR/ZW 10G Ethernet
Standard
● Compliant to SFF-8431
● Compliant to SFF 8472
● RoHS Compliant.

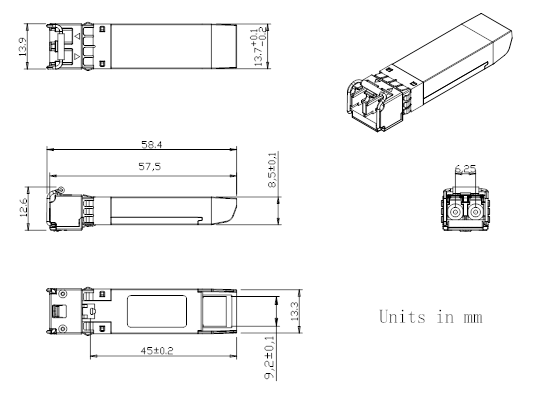

Mechanical Specifications
Ordering information
|
Part Number |
Product Description |
|
FTCS-151X-H0D |
1550nm, 10Gbps,100km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
|
FTCS-151X-H0DE |
1550nm, 10Gbps,100km, -20ºC ~ +85ºC ,With Digital Diagnostic Monitoring |
|
FTCS-151X-H0DI |
1550nm, 10Gbps,100km, -40ºC ~ +85ºC ,With Digital Diagnostic Monitoring |
注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
