20KM / 40KM SFP+ ER 光模块

Description
F-tone Networks SFP+ER Transceiver is designed for 10GBASE-ER/EW, and 8.5G/10G Fiber- Channel applications.The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. F-tone Networks SFP+ER Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features
● Compliant with SFF-8431 and IEE802.3ae
● Supports rate up to 10.3 Gb/s bit rates
● 1G/2G/4G/ 8G/10G Fiber Channel applications.
● Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
● Cooled EML transmitter and PIN receiver
● link length up to 40km
● Low Power Dissipation 1.5W Maximum
● Single 3.3V power supply
● Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
● For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
● For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
● RoHS compliant and lead free
● Operating case temperature:
        Standard : 0 to +70°C
        Industrial : -40 to +85°C

Applications
● 10GBASE-ER/EW (with/without FEC)
● 10G Fiber Channel (with/without FEC)
● For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
● For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
● 1G/2G/4G/ 8G/10G Fiber Channel applications.

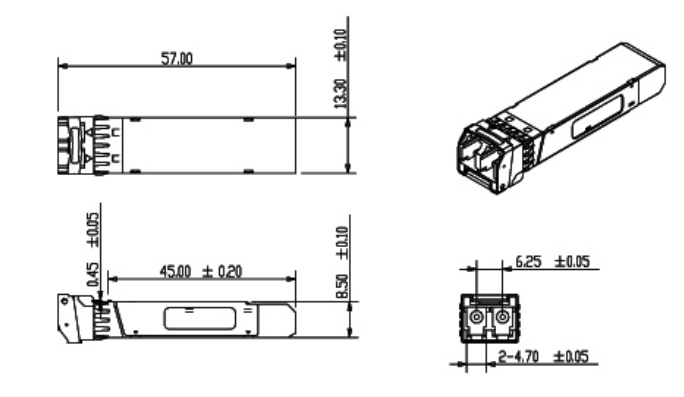

Mechanical Specifications

Ordering information

注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
