10Gb/s 80km SFP+ DWDM 光模块
Description
10Gb/s 80km SFP+ DWDM 光模块
F-tone Networks’s FTCS-Hxxx1X-80D SFP+ is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data from 9.95Gb/s to 11.3Gb/s bit rates.
Product Features
● Duplex LC Connector
● Support hot-pluggable
● Metal with lower EMI
● Excellent ESD protection
● RoHS Compliant and Lead-Free
● Compliant with IEEE 802.3ae
● ITU-T G.959,G.691 and G.692 compliant
● Temperature-stabilized DWDM-rated EML transmitter and APD ROSA
● Up to 80KM for single mode fiber
● 50GHz ITU Grid, C Band
● GR-253-CORE compliant
● Compliant with SFP+ MSA: SFF-8431 Rev4.1
● Digital diagnostic compatible with SFF-8472 Rev11.0
● Single 3.3V power supply and Low power dissipation <1.8W( 0~ 70℃)， <1.4W(25℃)
Applications
● DWDM 80km point to point links:
● Fibre Channel 8.5G and 10G
● 10G Ethernet
● ITU-T G.698.1 DS100S1-2Dz(C)

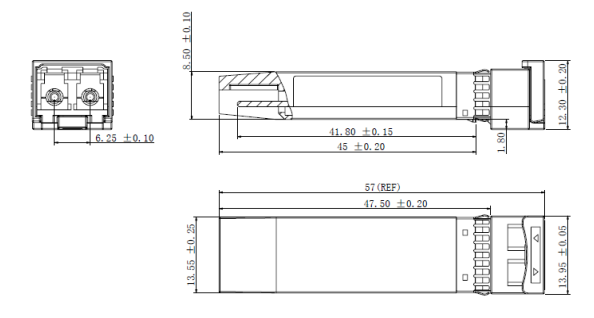

Mechanical Dimensions
Part Number Ordering Information
|
Product Selection—FTCS-Hxxx1X-80D-50GHZ |
|||
|
Product Code |
ITU channel |
Frequency (THz) |
Center Wavelength (nm) |
|
FTCS-H6101X-80D |
61.0 |
196.1 |
1528.77 |
|
FTCS-H6051X-80D |
60.5 |
196.05 |
1529.163 |
|
FTCS-H6001X-80D |
60.0 |
196 |
1529.553 |
|
FTCS-H5951X-80D |
59.5 |
195.95 |
1529.944 |
|
FTCS-H5901X-80D |
59.0 |
195.9 |
1530.334 |
|
FTCS-H5851X-80D |
58.5 |
195.85 |
1530.725 |
|
FTCS-H5801X-80D |
58.0 |
195.8 |
1531.116 |
|
FTCS-H5751X-80D |
57.5 |
195.75 |
1531.507 |
|
FTCS-H5701X-80D |
57.0 |
195.7 |
1531.898 |
|
FTCS-H5651X-80D |
56.5 |
195.65 |
1532.29 |
|
FTCS-H5601X-80D |
56.0 |
195.6 |
1532.681 |
|
FTCS-H5551X-80D |
55.5 |
195.55 |
1533.073 |
|
FTCS-H5501X-80D |
55.0 |
195.5 |
1533.465 |
|
FTCS-H5451X-80D |
54.5 |
195.45 |
1533.858 |
|
FTCS-H5401X-80D |
54.0 |
195.4 |
1534.25 |
|
FTCS-H5351X-80D |
53.5 |
195.35 |
1534.643 |
|
FTCS-H5301X-80D |
53.0 |
195.3 |
1535.036 |
|
FTCS-H5251X-80D |
52.5 |
195.25 |
1535.429 |
|
FTCS-H5201X-80D |
52.0 |
195.2 |
1535.822 |
|
FTCS-H5151X-80D |
51.5 |
195.15 |
1536.216 |
|
FTCS-H5101X-80D |
51.0 |
195.1 |
1536.609 |
|
FTCS-H5051X-80D |
50.5 |
195.05 |
1537.003 |
|
FTCS-H5001X-80D |
50.0 |
195 |
1537.397 |
|
FTCS-H4951X-80D |
49.5 |
194.95 |
1537.792 |
|
FTCS-H4901X-80D |
49.0 |
194.9 |
1538.186 |
|
FTCS-H4851X-80D |
48.5 |
194.85 |
1538.581 |
|
FTCS-H4801X-80D |
48.0 |
194.8 |
1538.976 |
|
FTCS-H4751X-80D |
47.5 |
194.75 |
1539.371 |
|
FTCS-H4701X-80D |
47.0 |
194.7 |
1539.766 |
|
FTCS-H4651X-80D |
46.5 |
194.65 |
1540.162 |
|
FTCS-H4601X-80D |
46.0 |
194.6 |
1540.557 |
|
FTCS-H4551X-80D |
45.5 |
194.55 |
1540.953 |
|
FTCS-H4501X-80D |
45.0 |
194.5 |
1541.349 |
|
FTCS-H4451X-80D |
44.5 |
194.45 |
1541.746 |
|
FTCS-H4401X-80D |
44.0 |
194.4 |
1542.142 |
|
FTCS-H4351X-80D |
43.5 |
194.35 |
1542.539 |
|
FTCS-H4301X-80D |
43.0 |
194.3 |
1542.936 |
|
FTCS-H4251X-80D |
42.5 |
194.25 |
1543.333 |
|
FTCS-H4201X-80D |
42.0 |
194.2 |
1543.73 |
|
FTCS-H4151X-80D |
41.5 |
194.15 |
1544.128 |
|
FTCS-H4101X-80D |
41.0 |
194.1 |
1544.526 |
|
FTCS-H4051X-80D |
40.5 |
194.05 |
1544.924 |
|
FTCS-H4001X-80D |
40.0 |
194 |
1545.322 |
|
FTCS-H3951X-80D |
39.5 |
193.95 |
1545.72 |
|
FTCS-H3901X-80D |
39.0 |
193.9 |
1546.119 |
|
FTCS-H3851X-80D |
38.5 |
193.85 |
1546.518 |
|
FTCS-H3801X-80D |
38 |
193.8 |
1546.92 |
|
FTCS-H3751X-80D |
37.5 |
193.75 |
1547.316 |
|
FTCS-H3701X-80D |
37.0 |
193.7 |
1547.715 |
|
FTCS-H3651X-80D |
36.5 |
193.65 |
1548.115 |
|
FTCS-H3601X-80D |
36.0 |
193.6 |
1548.515 |
|
FTCS-H3551X-80D |
35.5 |
193.55 |
1548.915 |
|
FTCS-H3501X-80D |
35.0 |
193.5 |
1549.315 |
|
FTCS-H3451X-80D |
34.5 |
193.45 |
1549.715 |
|
FTCS-H3401X-80D |
34.0 |
193.4 |
1550.116 |
|
FTCS-H3351X-80D |
33.5 |
193.35 |
1550.517 |
|
FTCS-H3301X-80D |
33.0 |
193.3 |
1550.918 |
|
FTCS-H3251X-80D |
32.5 |
193.25 |
1551.319 |
|
FTCS-H3201X-80D |
32.0 |
193.2 |
1551.721 |
|
FTCS-H3151X-80D |
31.5 |
193.15 |
1552.122 |
|
FTCS-H3101X-80D |
31.0 |
193.1 |
1552.524 |
|
FTCS-H3051X-80D |
30.5 |
193.05 |
1552.926 |
|
FTCS-H3001X-80D |
30.0 |
193 |
1553.329 |
|
FTCS-H2951X-80D |
29.5 |
192.95 |
1553.731 |
|
FTCS-H2901X-80D |
29.0 |
192.9 |
1554.134 |
|
FTCS-H2851X-80D |
28.5 |
192.85 |
1554.537 |
|
FTCS-2801X-80D |
28.0 |
192.8 |
1554.94 |
|
FTCS-H2751X-80D |
27.5 |
192.75 |
1555.343 |
|
FTCS-H2701X-80D |
27.0 |
192.7 |
1555.747 |
|
FTCS-H2651X-80D |
26.5 |
192.65 |
1556.151 |
|
FTCS-H2601X-80D |
26.0 |
192.6 |
1556.555 |
|
FTCS-H2551X-80D |
25.5 |
192.55 |
1556.959 |
|
FTCS-H2501X-80D |
25.0 |
192.5 |
1557.363 |
|
FTCS-H2451X-80D |
24.5 |
192.45 |
1557.768 |
|
FTCS-H2401X-80D |
24.0 |
192.4 |
1558.173 |
|
FTCS-H2351X-80D |
23.5 |
192.35 |
1558.578 |
|
FTCS-H2301X-80D |
23.0 |
192.3 |
1558.983 |
|
FTCS-H2251X-80D |
22.5 |
192.25 |
1559.389 |
|
FTCS-H2201X-80D |
22.0 |
192.2 |
1559.794 |
|
FTCS-H2151X-80D |
21.5 |
192.15 |
1560.2 |
|
FTCS-H2101X-80D |
21.0 |
192.1 |
1560.606 |
|
FTCS-H2051X-80D |
20.5 |
192.05 |
1561.013 |
|
FTCS-H2001X-80D |
20.0 |
192 |
1561.419 |
|
FTCS-H1951X-80D |
19.5 |
191.95 |
1561.826 |
|
FTCS-H1901X-80D |
19.0 |
191.9 |
1562.233 |
|
FTCS-H1851X-80D |
18.5 |
191.85 |
1562.64 |
|
FTCS-H1801X-80D |
18.0 |
191.8 |
1563.047 |
|
FTCS-H1751X-80D |
17.5 |
191.75 |
1563.455 |
|
FTCS-H1701X-80D |
17.0 |
191.7 |
1563.863 |
注：本产品有全国产化型号可选
本产品为DWDM SFP+系列光模块，如有需要，请联系我们。
