10Gb/s SFP+ BIDI 10km 光模块（1330Tx/1270Rx）

Description
F-tone Networks’FTCS-B271X-10Dxx/FTCS-B331X-10Dxx SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
FTCS-B271X-10Dxx/FTCS-B331X-10Dxx transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags,which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8bit address 1010001X (A2h), so the originally defined serial ID memory map
remains unchanged.

Features
● Up to 11.3Gb/s data links
● 1270nm DFB laser and PIN receiver for FTCS-B271X-10Dxx
● 1330nm DFB laser and PIN receiver for FTCS-B331X-10Dxx
● Up to 10km on 9/125µm SMF
● Hot-pluggable SFP+ footprint
● BIDI LC optical connector
● RoHS- 10 compliant and lead-free
● Single +3.3V power supply
● Compliant with SFF+MSA and SFF-8472
● Support Digital Monitoring interface
● Metal enclosure, for lower EMI
● Meet ESD requirements, resist 8KV direct contact voltage
● Case operating temperature
         Commercial: 0 ~ +70℃
         Extended: - 10 ~ +80℃
         Industrial: -40 ~ +85℃

Applications
● 10GBASE-LR/LW & 10G Ethernet
● SDH STM64
● Other Optical Links

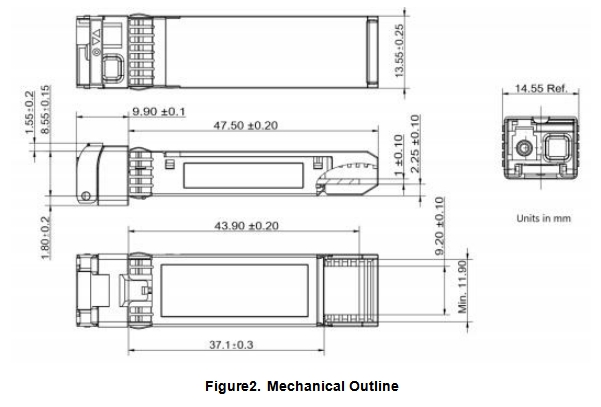

Mechanical Dimensions
Ordering Information
