10Gbps DWDM SFP+ Transceiver(80KM)
Description
10Gbps DWDM SFP+ Transceiver(80KM)
FEATURES
● Supports 9.95 to 11.3Gb/s bit rates
● Hot-Pluggable
● Duplex LC connector
● 100GHz ITU Grid, C Band
● DWDM EML transmitter, APD photo-detector
● SMF links up to 80km
● 2-wire interface for management specifications compliant
● with SFF 8472 digital diagnostic monitoring interface
● Power Supply :+3.3V
● RoHS compliant
● Operating case temperature:
FTCS-Dxx1X-80D : 0 ℃to 70℃
FTCS-Dxx1X-80DI : -40 ℃to 85℃
APPLICATIONS
● 10GBASE-ZR/ZW Ethernet
● Amplified DWDM networks

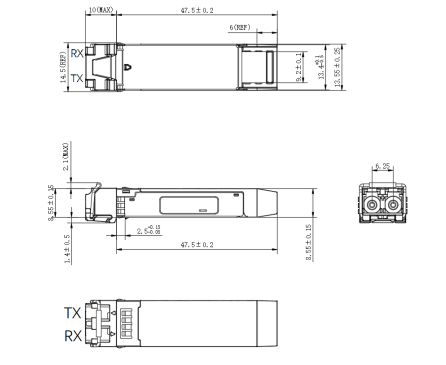

Mechanical Dimensions
Ordering Information
FTCS-Dxx1X-80Dxx XX: 100GHZ ITU Grid Wavelength
|
P/No. |
Wavelength (nm) |
TX Power (dBm) |
RX Sens (dBm) |
Package |
Bit Rate (Gb/s) |
Dist. (km) |
Volt. (V) |
Temp. (℃) |
|
FTCS-Dxx1X-80D |
Please See Chart 1 |
0 to +4 |
-23 |
LC |
10.3125 |
80 |
3.3 |
0 ~70 |
|
P/No. |
Wavelength (nm) |
TX Power (dBm) |
RX Sens (dBm) |
Package |
Bit Rate (Gb/s) |
Dist. (km) |
Volt. (V) |
Temp. (℃) |
|
FTCS-Dxx1X-80DI |
Please See Chart 1 |
0 to +4 |
-23 |
LC |
10.3125 |
80 |
3.3 |
-40 ~85 |
Chart 1:
|
Wavelength(nm) |
1528.77 |
1529.55 |
1530.33 |
1531.12 |
1531.90 |
1532.68 |
1533.47 |
1534.25 |
1535.04 |
|
Code |
61 |
60 |
59 |
58 |
57 |
56 |
55 |
54 |
53 |
|
Wavelength(nm) |
1535.82 |
1536.61 |
1537.40 |
1538.19 |
1538.98 |
1539.77 |
1540.56 |
1541.35 |
1542.14 |
|
Code |
52 |
51 |
50 |
49 |
48 |
47 |
46 |
45 |
44 |
|
Wavelength(nm) |
1542.94 |
1543.73 |
1544.53 |
1545.32 |
1546.12 |
1546.92 |
1547.72 |
1548.51 |
1549.32 |
|
Code |
43 |
42 |
41 |
40 |
39 |
38 |
37 |
36 |
35 |
|
Wavelength(nm) |
1550.12 |
1550.92 |
1551.72 |
1552.52 |
1553.33 |
1554.13 |
1554.94 |
1555.75 |
1556.55 |
|
Code |
34 |
33 |
32 |
31 |
30 |
29 |
28 |
27 |
26 |
|
Wavelength(nm) |
1557.36 |
1558.17 |
1558.98 |
1559.79 |
1560.61 |
1561.42 |
1562.23 |
1563.05 |
1563.86 |
|
Code |
25 |
24 |
23 |
22 |
21 |
20 |
19 |
18 |
17 |
For example:
- Wavelength= 1557.36 nm , Temp.：-40~85℃, P/No.=FTCS-D551X-80DI.
- Wavelength= 1540.56 nm , Temp.：0~70℃ , P/No.=FTCS-D541X-80D.
注：本产品有全国产化型号可选
本产品为DWDM SFP+系列光模块，如有需要，请联系我们。
