10Gbps MiniSFF LC Transceiver

10Gbps MiniSFF LC Transceiver

0.0/5 rating (0 votes)

Description

10Gbps MiniSFF LC Transceiver

FEATURES
● Surface mount I/O pins for high speed signal integrity

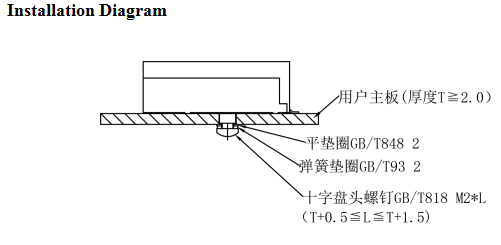

● All metal body, solder or screw mount options
● Industrial Temp range, vibration tolerant design
● 850 nm VCSEL Laser,PIN photo-detector Receiver
● 2-Fiber MiniSFF LC Transceiver
● Distance up to 300 m
● Single 3.3V Power Supply
● -55 to 70℃ Operating Temperature

APPLICATIONS
● 10GBASE-LR/LW 10G Ethernet

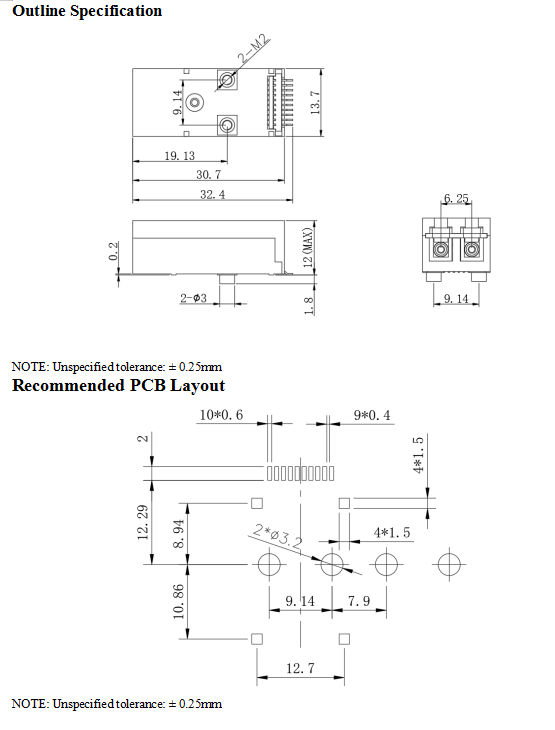

A13A13

Ordering Information

P/No.

Package

Bit Rate

(Gb/s)

Dist.

(m)

TX Wavelength

(nm)

RX Wavelength

(nm)

TX

Power

(dBm)

RX

Sens

(dBm)

Volt.

(V)

Temp.

(℃)

FT-95-RS-851X-DZ21081303

LC

10

300

850

1100~1620

-4 to 0

-15

3.3

-55~70













本产品为FT-95-系列，仅展示部分参数，如有需要，请联系我们。
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
