标准光模块
10Gbps SFP+ 光模块，传输距离20km
Description
10Gbps SFP+ 光模块，传输距离20km
产品描述
这款1310 nm DFB 10Gbps SFP+光模块设计用于通过单模光纤传输和接收链路长度为20km的光学数据。SFP+20km模块的电气接口符合SFI电气规范。发射器输入和接收器输出阻抗差为100欧姆。数据线内部交流耦合。该模块提供差分端接，并减少差分到共模的转换，以实现高质量的信号端接和低EMI。SFI通常操作超过200mm的改进的FR4材料，或者使用一个连接器操作高达约150mmof的标准FR4。
特征
● 符合IEEE 802.3ae 10GBASE-LR的光学接口
● 电气接口符合SFF-8431
● 可热插拔
● 1310nm DFB发射器，PIN光电探测器
● 低功耗
● 适用于20km SMF连接
● 全金属外壳提供卓越的EMI性能
● 高级固件允许将客户系统加密信息存储在光模块中
● 经济高效的SFP+解决方案，实现更高的端口密度和更大的带宽
● 符合RoHS6标准（无铅）
● 外壳工作温度
商用：0~+70℃
工业：-40～+85℃
应用
● 10GBASE-LR，10.3125Gbps
● 其他光链路

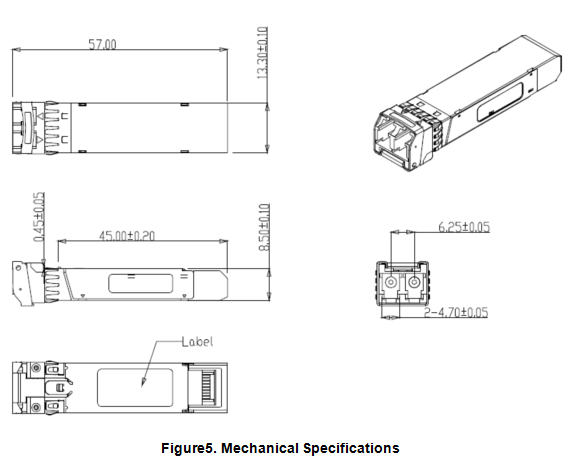

机械尺寸
订购信息
|
产品型号 |
产品描述 |
|
FTCS-131X-20D |
1310nm, 10Gbps, SFP+ 20km, 0ºC ~ +70ºC |
|
FTCS-131X-20DI |
1310nm, 10Gbps, SFP+ 20km, -40ºC ~ +85ºC |
注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
