10M 1X9 Dual Receiver Module

Product Description
F-tone Networks’s FTTR-2R85L2A-02I Dual Receiver module is the perfect solution for low-speed communication networks.The product is dual-channel optical recevier module.The receiver module supportes data rates up to 10Mbps. The module is compliant with the 1×9 footprint.The Receiver module provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission.

Product Feature
● Up to 2Km on 62.5/125μm MMF
● 3.3V power supply
● SC/ST/FC duplex optical interface
● LVTTL Output and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Industrial： -40°C to +85°C)

Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

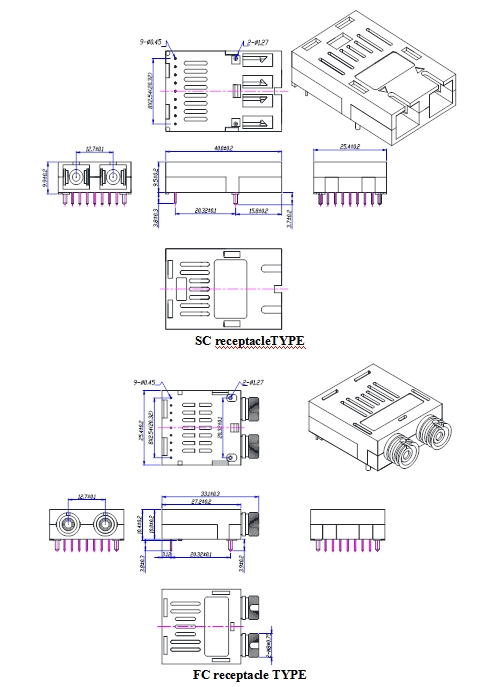

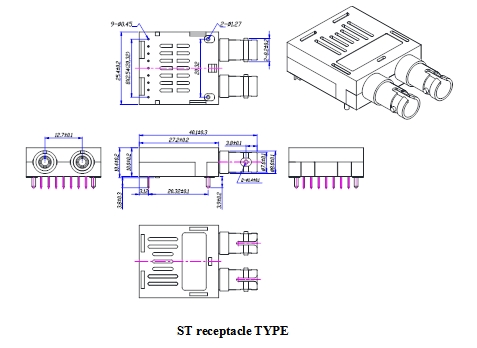

Module Outline Drawing（Units in mm)

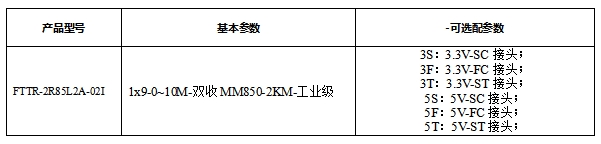

Order Information

注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
