3Gbps Video Dual Optical SM Receiver
Description
3Gbps Video Dual Optical SM Receiver
FEATURES
● All metal body, solder or screw mount options
● Distance up to 20 km for 3G-SDI
● Speed from 50 Mbps to 3Gbps
● Support Video pathological pattern for SD-SDI,HD-SDI,3G-SDI.
● 1×9 Package with FC connector
● +3.3 V Power Supply
● RoHS-6 Compliant
● Operating case temperature: -40℃~+85℃
APPLICATIONS
● Switch to Switch Interface
● High Speed Interface for File Servers
● High-density Video Routers

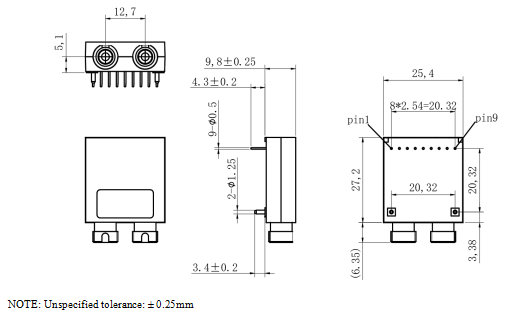

Mechanical Dimensions
Ordering Information
|
P/No. |
Package |
Bit Rate(Mb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
2 RX Sens (dBm) |
Temp.(℃) |
|
FTTR-2RCxxxx3G-20I |
FC |
50~3000 |
20 |
1100~1610 |
3.3 |
-18 |
-40~85 |
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
