155Mbps 1×9 MM Duplex Transmitter
Description
155Mbps 1×9 MM Duplex Transmitter
Description
FTTT-1303-02XX series of transceiver modules are the perfect solution for high -speed communication networks.The transceiver modules support data rates up to 155Mbps. These modules are fully compliant with the Multi-sourced 1×9 protocol.The transceiver modules supplies the PECL interface of 3.3V Voltage and provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps / 125Mbps/ 155Mbps rate and SONET/OC-3, SDH/STM-1 for Telecommunication.
Features
● Operating data rate 155Mbps
● 1310nm wavelength Laser Transmitter
● Dual Fiber ST Plastic Receptacle
● Single +3.3V power supply
● Up to 2Km on 62.5/125μm MMF
● PECL Signal Input
● RoHS compliant
Applications
● ATM equipments
● SONET/OC-3、SDH/STM-1 equipments
● 100Mbps Fast Ethernet equipments
● Digital video transmission system
Compliance
● ITU-T G.957
● RoHS

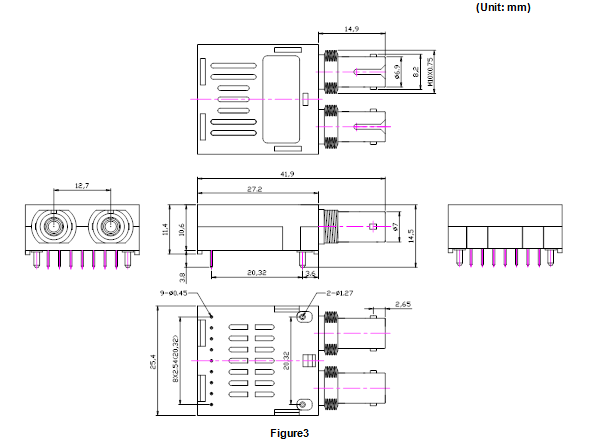

Module Outline Drawing
Ordering information
|
Part Number |
Product Description |
|
FTTT-1303-02 |
1x9-T1310/T1310-155M-3.3V-Data Level:LVPECL-2KM-SC;0 to +70°C |
|
FTTT-1303-02F |
1x9-T1310/T1310-155M-3.3V-Data Level:LVPECL-2KM-FC;0 to +70°C |
|
FTTT-1303-02F |
1x9-T1310/T1310-155M-3.3V-Data Level:LVPECL-2KM-ST;0 to +70°C |
|
FTTT-1303-02 |
1x9-T1310/T1310-155M-3.3V-Data Level:LVPECL-2KM-SC;-40 to +85°C |
|
FTTT-1303-02F |
1x9-T1310/T1310-155M-3.3V-Data Level:LVPECL-2KM-FC;-40 to +85°C |
|
FTTT-1303-02F |
1x9-T1310/T1310-155M-3.3V-Data Level:LVPECL-2KM-ST;-40 to +85°C |
|
|
|
|
Other Characteristic-Optical，Electrical Customized Transceivers,Please contact our sales |
|
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
