1×9 10Mbps Transceiver Module
Description
1×9 10Mbps Transceiver Module
Product Description
F-tone’s FTTR-xxL2-xxxx series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 10Mbps. The module is fully compliant with the Multi-sourced 1x9 protocol.These transceiver modules provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission.
Product Features
● VCSEL/FP Laser Diode Transmitter
● Up to 2 Km on 62.5/125μm MMF，Up to 40 Km on 9/125μm SMF
● 3.3V, 5V, 3.3V/5.0V power supply
● SC/ST/FC duplex optical interface
● (LV)TTL Inputs / Outputs and or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Fiber System

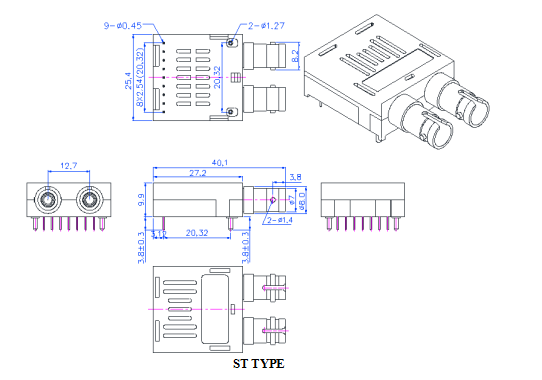

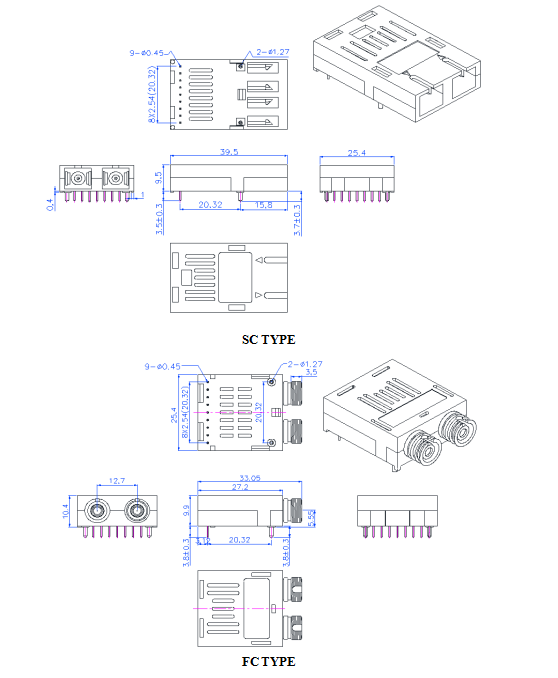

Module Outline Drawing
0-2M Ordering information

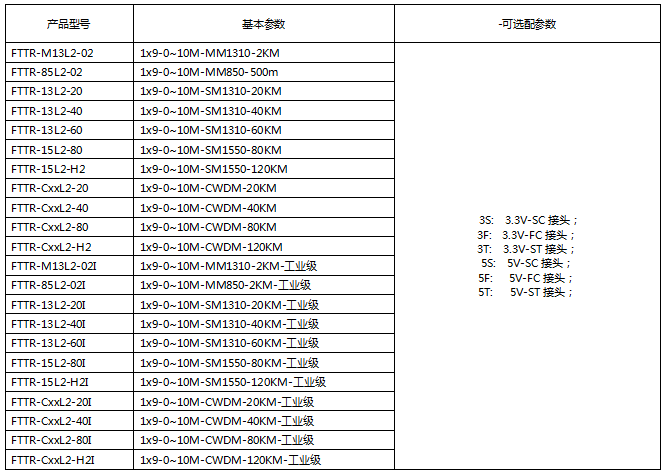

0-10M Ordering information
2-100M Ordering information
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
